Description:Single-package high performance, low power AVR® 8-bit microcontroller with LIN
transceiver, 5V regulator (85mA current capability) and watchdog
● Very low current consumption in sleep mode
● 8Kbytes/16Kbytes flash memory for application program
(Atmel® ATA6616C/ATA6617C)
● Supply voltage up to 40V
● Operating voltage: 5V to 27V
● Temperature range: Tcase –40°C to +125°C
● QFN38, 5mm 7mm package
A good PCB layout for the ATA6617C-P3QW-1 involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The inductor value for the ATA6617C-P3QW-1 depends on the input voltage, output voltage, and output current. A good starting point is to use the inductor value recommended in the datasheet, and then adjust it based on the specific application requirements. It's also important to consider the inductor's saturation current, DC resistance, and core material.
The maximum ambient temperature range for the ATA6617C-P3QW-1 is -40°C to +125°C. However, the device's performance and reliability may degrade at temperatures above 85°C, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
To troubleshoot issues with the ATA6617C-P3QW-1, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or burning smells. Use an oscilloscope to check for any voltage or current oscillations. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
Yes, the ATA6617C-P3QW-1 is suitable for high-reliability applications, such as in the automotive or aerospace industry. The device is AEC-Q100 qualified and meets the requirements for high-reliability applications. However, it's recommended to consult the datasheet and application notes for specific guidelines on using the device in high-reliability applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ATA6617C-P3QW-1 Overview

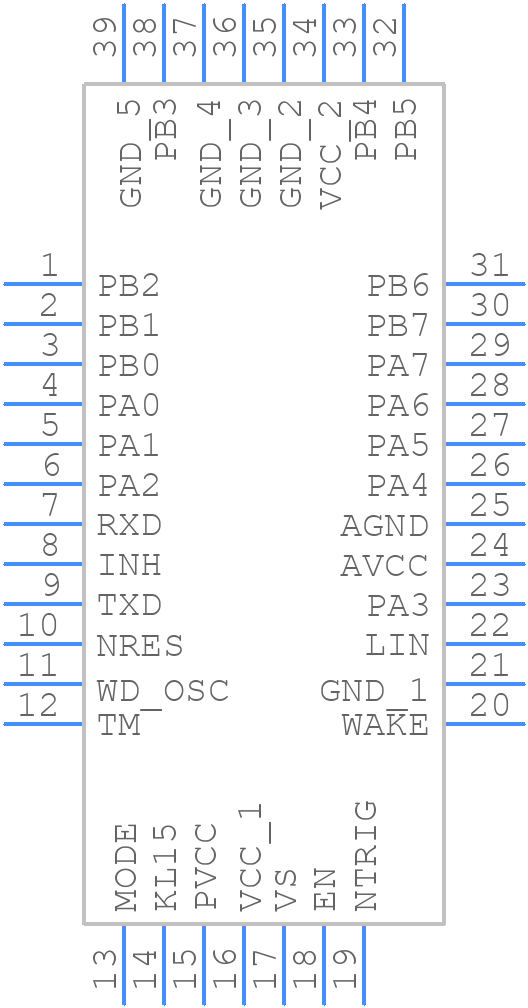

Use the download button to access the ATA6617C-P3QW-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATA66,
or try a keyword search, such as Microcontrollers
