- Stock & Prices $ Price & Stock for ATA6624C-PGQW-1
- Part Number ATA6624C-PGQW-1
- Manufacturer Microchip
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - ATA6624C-PGQW-1
- Released Date Aug 22, 2024
- Last Modified Date Aug 22, 2024 9:13 AM UTC
- Pinout / Pin List Click Here (Member Only)
ATA6624C-PGQW-1 Details
-
Manufacturer Part Number:
ATA6624C-PGQW-1
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
5 X 5 MM, LEAD FREE, VQFN-20
-
Pin Count:
20
-
Manufacturer Package Code:
VQFN-20
-
Country Of Origin:
Taiwan, Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
9 Weeks
-
Manufacturer:
Microchip Technology Inc
ATA6624C-PGQW-1 Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the ATA6624C-PGQW-1 is -40°C to +125°C.
-
To configure the device for low-power mode, set the EN pin low and ensure that the VCC pin is connected to a voltage source between 4.5V and 5.5V. Additionally, ensure that the device is not transmitting or receiving data during this mode.
-
The maximum data transfer rate supported by the ATA6624C-PGQW-1 is 1 Mbps.
-
To troubleshoot issues with the device not transmitting or receiving data, check the following: ensure that the device is properly powered, check the connections to the transceiver, verify that the device is configured correctly, and check for any noise or interference on the bus.
-
For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to keep the transceiver and its associated components away from noise sources and high-current paths.
Trust Checks
Community Provided
System Verified
Community Approved
ATA6624C-PGQW-1 Overview

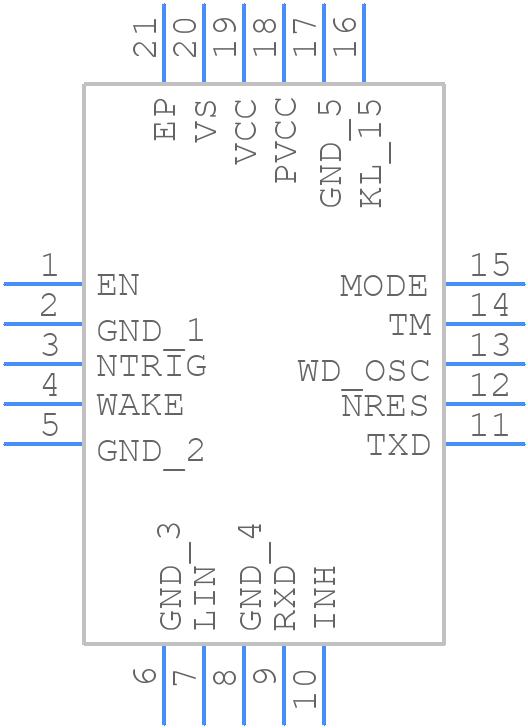

Use the download button to access the ATA6624C-PGQW-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATA66,
or try a keyword search, such as Network Interfaces
