- Stock & Prices $ Price & Stock for ATA663201-GBQW
- Part Number ATA663201-GBQW
- Manufacturer Microchip
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - 8-Lead VDFN
- Released Date Jul 2, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ATA663201-GBQW Details
-
Manufacturer Part Number:
ATA663201-GBQW
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
8
-
Manufacturer Package Code:
VDFN-8
-
Country Of Origin:
Taiwan, Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
5
-
JESD-30 Code:
S-PDSO-N8
ATA663201-GBQW Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the ATA663201-GBQW is -40°C to +125°C.
-
To configure the device for low-power mode, set the EN pin low and ensure the VCC pin is below 1.8V. Additionally, disable the transmitter and receiver by setting the TXEN and RXEN pins low, respectively.
-
Microchip recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signal traces separate. Also, ensure the decoupling capacitors are placed close to the VCC pin.
-
Yes, the ATA663201-GBQW can operate with a 3.3V supply voltage, but the device's performance may be affected. It's recommended to use a 1.8V supply voltage for optimal performance.
-
To troubleshoot issues, check the device's configuration, ensure the correct clock frequency, and verify the signal integrity. Also, use a logic analyzer or oscilloscope to monitor the signal waveforms and debug the issue.
Trust Checks
Community Provided
System Verified
Community Approved
ATA663201-GBQW Overview

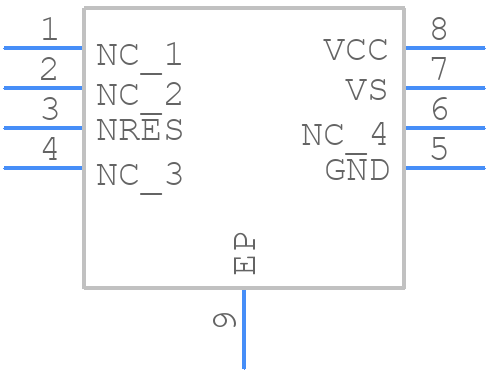

Use the download button to access the ATA663201-GBQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATA66,
or try a keyword search, such as Network Interfaces
