ATB2012-75011-T000 - TDK

Description: RF Balun 50MHz ~ 1.2GHz 20V 75/75Ohm 0805 (2012 Metric) -40 to 85°C

Download ATB2012-75011-T000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

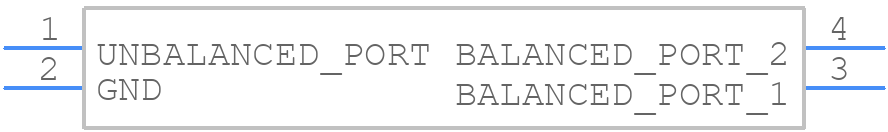

ATB2012-75011-T000 - TDK - PCB symbol
click to zoom
PCB Footprints
ATB2012-75011-T000 - TDK PCB footprint - Other - Other - 0805 (2012 Metric)_2026
click to zoom
3D Models
ATB2012-75011-T000 - TDK - 3D model - Other - 0805 (2012 Metric)_2026
click to zoom

ATB2012-75011-T000 Details

  • Manufacturer Part Number:

    ATB2012-75011-T000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Additional Feature:

    IMPEDANCE RATIO 1:1

  • Cut-off Frequency-Min:

    50 MHz

  • Height:

    1.2 mm

  • Input Voltage-Nom:

    20 V

  • Insertion Loss:

    1.2 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.2 mm

ATB2012-75011-T000 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the ATB2012-75011-T000 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • The ATB2012-75011-T000 is designed for high-frequency applications up to 1 GHz. It exhibits low insertion loss and high return loss, making it suitable for wireless communication systems, GPS, and other high-frequency applications.
  • Yes, the ATB2012-75011-T000 is compatible with lead-free soldering processes. TDK Corporation ensures that their components meet the requirements of the RoHS directive and can withstand the higher temperatures associated with lead-free soldering.
  • The operating temperature range for the ATB2012-75011-T000 is -40°C to +125°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and derating may be necessary for reliable operation.
  • Yes, the ATB2012-75011-T000 is suitable for automotive applications. It meets the requirements of the AEC-Q200 standard, which ensures the component's reliability and performance in harsh automotive environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATB2012-75011-T000 Overview

Use the download button to access the ATB2012-75011-T000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATB20, or try a keyword search, such as RF Transformers

About TDK
