ATB2012E-20011-T06 - TDK

Description: Signal Conditioning 1.5ohms 150mA 20VDC Wound Chip Balun

Download ATB2012E-20011-T06 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

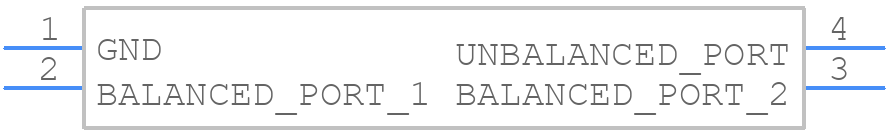

Symbol
ATB2012E-20011-T06 - TDK - PCB symbol
click to zoom
PCB Footprints
ATB2012E-20011-T06 - TDK PCB footprint - Other - Other - ATB2012E-20011-T06-1
click to zoom
3D Models
ATB2012E-20011-T06 - TDK - 3D model - Other - ATB2012E-20011-T06-1
click to zoom

ATB2012E-20011-T06 Details

  • Manufacturer Part Number:

    ATB2012E-20011-T06

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Height:

    0.65 mm

  • Input Voltage-Nom:

    20 V

  • Insertion Loss:

    1 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.2 mm

ATB2012E-20011-T06 Frequently Asked Questions (FAQs)

  • TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
  • The ATB2012E-20011-T06 has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the component.
  • The SRF of the ATB2012E-20011-T06 is not explicitly stated in the datasheet. However, TDK provides an impedance vs. frequency graph that can be used to estimate the SRF. Alternatively, you can contact TDK's technical support for more information.
  • The ATB2012E-20011-T06 is designed to meet the requirements of various industrial and automotive applications. However, it's essential to evaluate the inductor's performance under specific vibration and shock conditions. TDK provides vibration and shock test data upon request.
  • TDK recommends storing the ATB2012E-20011-T06 in a dry, cool place, away from direct sunlight and moisture. Handling should be done with care to avoid mechanical stress, and electrostatic discharge (ESD) precautions should be taken to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATB2012E-20011-T06 Overview

Use the download button to access the ATB2012E-20011-T06 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATB20, or try a keyword search, such as RF Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
