Part Image

ATB2012E-50011M-T01 - TDK

Description: Signal Conditioning 2.2dB 0.5ohms 150mA 50/50ohms imp. 20VDC

Download ATB2012E-50011M-T01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

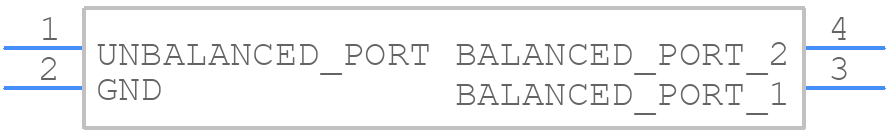

ATB2012E-50011M-T01 - TDK - PCB symbol
click to zoom
PCB Footprints
ATB2012E-50011M-T01 - TDK PCB footprint - Other - Other - ATB2012E-50011M-T01
click to zoom
3D Models
ATB2012E-50011M-T01 - TDK - 3D model - Other - ATB2012E-50011M-T01
click to zoom

ATB2012E-50011M-T01 Details

  • Manufacturer Part Number:

    ATB2012E-50011M-T01

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Cut-off Frequency-Min:

    400 MHz

  • Height:

    1 mm

  • Input Voltage-Nom:

    20 V

  • Insertion Loss:

    2.2 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.2 mm

ATB2012E-50011M-T01 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the ATB2012E-50011M-T01 can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • Handle the ATB2012E-50011M-T01 by the edges to prevent damage to the component. Avoid touching the component's pins or body to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap or mat to discharge static electricity.
  • The maximum storage temperature for the ATB2012E-50011M-T01 is 40°C (104°F). Storing the component above this temperature can affect its reliability and lifespan.
  • The ATB2012E-50011M-T01 is not designed for use in humid environments. Exposure to high humidity can cause moisture to penetrate the component, leading to reliability issues. If you need to use the component in a humid environment, consider using a conformal coating or potting the component to protect it from moisture.
  • The thermal resistance of the ATB2012E-50011M-T01 is not explicitly stated in the datasheet. However, you can estimate the thermal resistance using the component's thermal impedance and the PCB's thermal conductivity. You can also consult with TDK Corporation's application engineers for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATB2012E-50011M-T01 Overview

Use the download button to access the ATB2012E-50011M-T01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATB20, or try a keyword search, such as RF Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
