The recommended land pattern for the ATB2012E-75011M-T01 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To prevent damage, handle the ATB2012E-75011M-T01 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage. Also, avoid bending or flexing the component during assembly.
The maximum allowable voltage derating for the ATB2012E-75011M-T01 is typically 80% of the rated voltage. However, it's recommended to consult the datasheet or contact TDK Corporation for specific derating guidelines to ensure reliable operation.
The ATB2012E-75011M-T01 is rated for operation up to 125°C. However, it's essential to consider the component's power dissipation, thermal resistance, and the overall system design to ensure reliable operation in high-temperature applications.
Store the ATB2012E-75011M-T01 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Keep the storage area clean, dry, and free from contaminants. Follow the storage guidelines provided by TDK Corporation or the component's packaging instructions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ATB2012E-75011M-T01 Overview

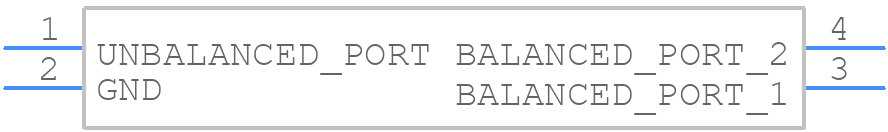

Use the download button to access the ATB2012E-75011M-T01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATB20,
or try a keyword search, such as RF Transformers
