ATB3225-50011CT-T000 - TDK

Description: Baluns, Pass Band=5 to 100MHz, Bal. Port Zc=50Ohm

Download ATB3225-50011CT-T000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

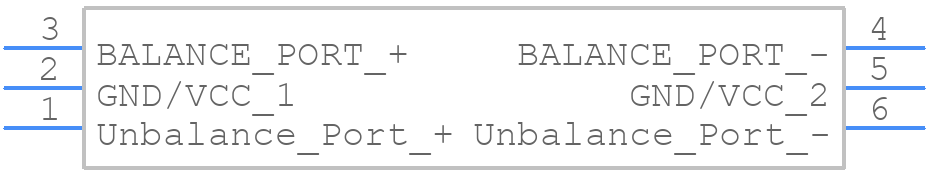

Symbol
ATB3225-50011CT-T000 - TDK - PCB symbol
click to zoom
PCB Footprints
ATB3225-50011CT-T000 - TDK PCB footprint - Other - Other - ATB3225
click to zoom
3D Models
ATB3225-50011CT-T000 - TDK - 3D model - Other - ATB3225
click to zoom

ATB3225-50011CT-T000 Details

  • Manufacturer Part Number:

    ATB3225-50011CT-T000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Additional Feature:

    IMPEDANCE RATIO IS 1:1

  • Cut-off Frequency-Min:

    5 MHz

  • Height:

    2.3 mm

  • Insertion Loss:

    1.5 dB

  • Length:

    3.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    2.5 mm

ATB3225-50011CT-T000 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the ATB3225-50011CT-T000 can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • Handle the ATB3225-50011CT-T000 by the edges to prevent damage to the component. Avoid touching the component's pins or body to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap or mat to discharge static electricity from your body.
  • The maximum storage temperature for the ATB3225-50011CT-T000 is 40°C (104°F) according to the TDK Corporation's datasheet. Storing the component above this temperature may affect its reliability and performance.
  • The ATB3225-50011CT-T000 is not designed for use in humid environments. Exposure to high humidity may cause moisture to penetrate the component, leading to reliability issues. If you need to use the component in a humid environment, consider using a conformal coating or potting the component to protect it from moisture.
  • The thermal resistance of the ATB3225-50011CT-T000 is not explicitly stated in the datasheet. However, you can estimate the thermal resistance using the component's thermal impedance and the thermal conductivity of the PCB material. Consult with a thermal expert or use thermal simulation software to determine the thermal resistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATB3225-50011CT-T000 Overview

Use the download button to access the ATB3225-50011CT-T000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATB32, or try a keyword search, such as RF Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
