TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
The ATB3225-75034CT-T000 is designed to minimize EMI and high-frequency noise. TDK's proprietary technology and internal shielding help to reduce radiation and susceptibility to external noise. However, proper PCB design, layout, and shielding are still necessary to ensure optimal performance.
While the datasheet specifies a temperature range of -40°C to +125°C, it's essential to note that the component's performance may degrade at extreme temperatures. It's recommended to operate the component within a temperature range of -20°C to +100°C for optimal performance and reliability.
The ATB3225-75034CT-T000 is designed to meet the requirements of various industrial and automotive applications. However, it's crucial to ensure that the component is properly mounted and secured to the PCB to withstand vibrations and shocks. TDK provides guidelines for mounting and securing the component in their application notes.
To prevent damage and ensure reliability, it's essential to store the ATB3225-75034CT-T000 in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions, and the component should be kept in its original packaging until ready for use.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ATB3225-75034CT-T000 Overview

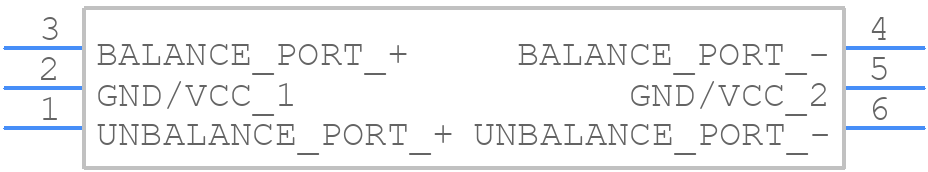

Use the download button to access the ATB3225-75034CT-T000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATB32,
or try a keyword search, such as RF Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
