ATB3225-75034CT - TDK

Description: RF Transformer 1.73:2 0.7Ohm Prim. DCR 0.7Ohm Sec. DCR 6 Terminal SMD

Download ATB3225-75034CT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

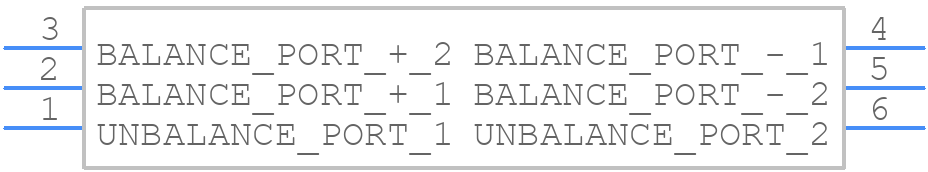

Symbol
ATB3225-75034CT - TDK - PCB symbol
click to zoom
PCB Footprints
ATB3225-75034CT - TDK PCB footprint - Other - Other - ATB3225-75034CT-3
click to zoom
3D Models
ATB3225-75034CT - TDK - 3D model - Other - ATB3225-75034CT-3
click to zoom

ATB3225-75034CT Details

  • Manufacturer Part Number:

    ATB3225-75034CT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Additional Feature:

    IMPEDANCE RATIO IS 3:4

  • Cut-off Frequency-Max:

    100 MHz

  • Cut-off Frequency-Min:

    1 MHz

  • Height:

    2.3 mm

  • Insertion Loss:

    2 dB

  • Length:

    3.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    2.5 mm

ATB3225-75034CT Frequently Asked Questions (FAQs)

  • The recommended land pattern for the ATB3225-75034CT can be found in the TDK Corporation's application note or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal issues.
  • The ATB3225-75034CT has a high power density, so thermal management is crucial. Ensure good airflow around the component, and consider using a heat sink or thermal interface material to reduce the thermal resistance. The datasheet provides thermal resistance values to help with thermal design.
  • The maximum operating temperature range for the ATB3225-75034CT is -40°C to 150°C. However, the component's performance and reliability may degrade if operated at the extreme ends of this range. It's essential to consider the application's temperature profile and ensure the component is operated within a safe temperature range.
  • The ATB3225-75034CT is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, you may need to take additional measures to ensure the component's reliability. Consult with TDK Corporation or a qualified engineer to determine the best approach for your specific application.
  • To ensure proper soldering, follow the recommended soldering profile and temperature range specified in the datasheet. Use a solder with a melting point compatible with the component's temperature rating, and avoid overheating the component during the soldering process.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATB3225-75034CT Overview

Use the download button to access the ATB3225-75034CT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATB32, or try a keyword search, such as RF Transformers
