ATBTLC1000-MR110CA - Microchip

Description: Bluetooth v4.1 (BLE) SMART SOC Class II 1.8V 24-Pin Tray

Download ATBTLC1000-MR110CA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

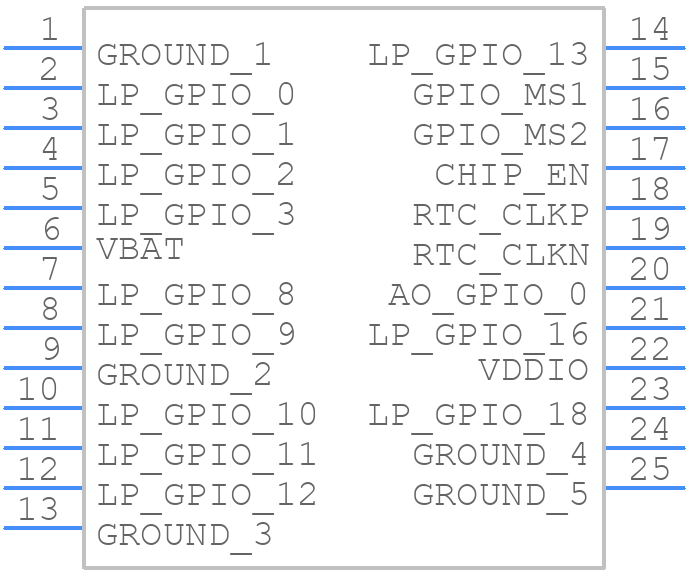

ATBTLC1000-MR110CA - Microchip - PCB symbol
click to zoom
PCB Footprints

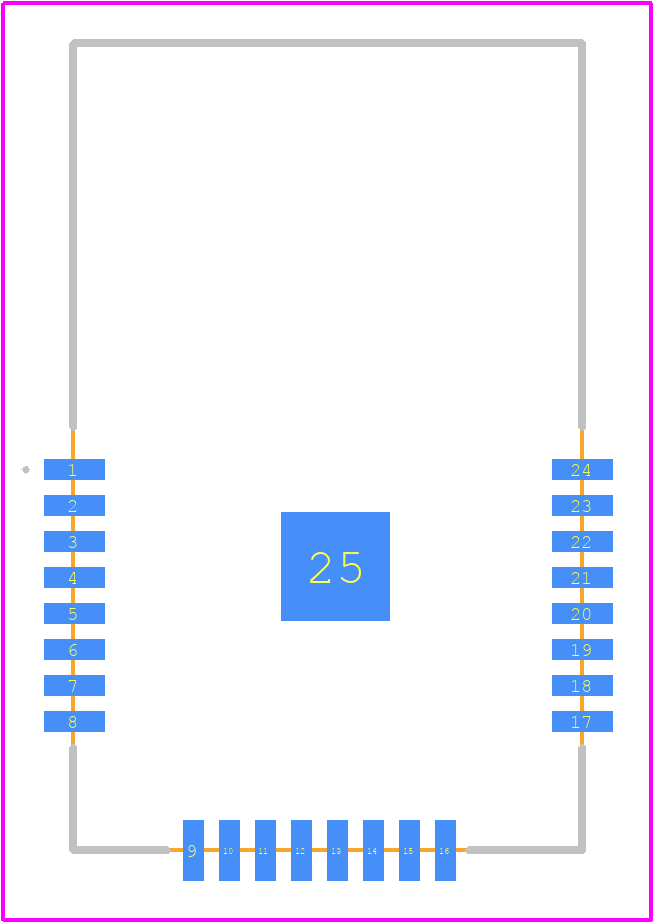

ATBTLC1000-MR110CA - Microchip PCB footprint - Other - Other - ATBTLC1000-MR110CA-4
click to zoom
3D Models
ATBTLC1000-MR110CA - Microchip - 3D model - Other - ATBTLC1000-MR110CA-4
click to zoom

ATBTLC1000-MR110CA Details

  • Manufacturer Part Number:

    ATBTLC1000-MR110CA

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-25

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N25

  • Length:

    20.157 mm

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.165 mm

  • Supply Voltage-Max:

    4.3 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.9 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    12.7 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

ATBTLC1000-MR110CA Frequently Asked Questions (FAQs)

  • The operating temperature range of the ATBTLC1000-MR110CA module is -40°C to +85°C.
  • No, the ATBTLC1000-MR110CA module is designed to operate at 3.3V, and using it with a 5V microcontroller may damage the module.
  • To configure the ATBTLC1000-MR110CA module for BLE mode, you need to set the module to 'BLE Peripheral' mode using the AT commands, and then configure the BLE settings using the 'AT+Ble' command.
  • The maximum data transfer rate of the ATBTLC1000-MR110CA module is 2 Mbps.
  • Yes, the ATBTLC1000-MR110CA module is a standalone Bluetooth module that can be used with any microcontroller that supports UART communication.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATBTLC1000-MR110CA Overview

Use the download button to access the ATBTLC1000-MR110CA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATBTL, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
