ATC30W08MAE1S5X - CONEC

Description: 34 Connector Plug, Male Pins Through Hole, Right Angle Gray AdvancedTCA®, -55°C ~ 125°C

Download ATC30W08MAE1S5X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

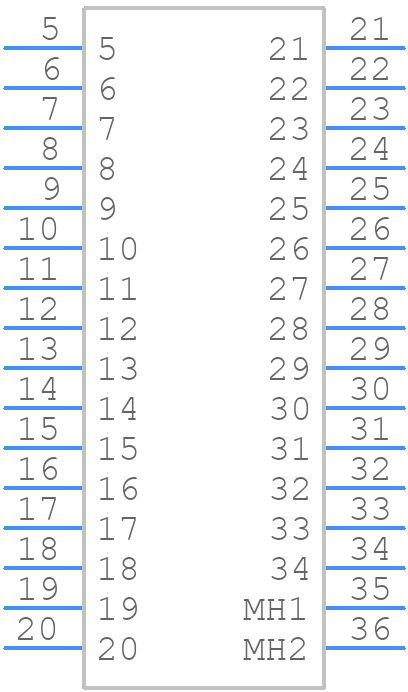

Symbol
ATC30W08MAE1S5X - CONEC - PCB symbol
click to zoom

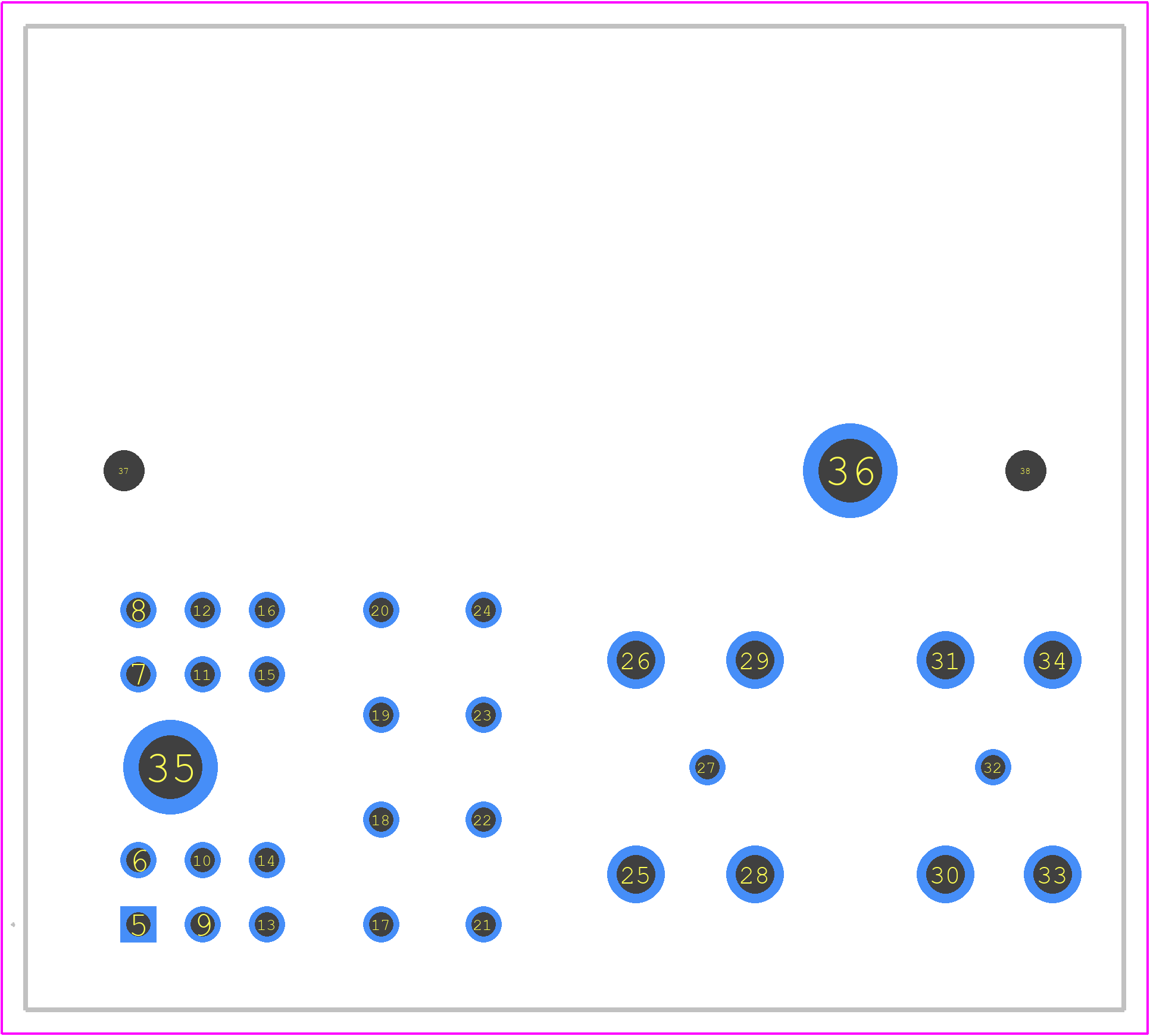

PCB Footprints
ATC30W08MAE1S5X - CONEC PCB footprint - Other - Other - ATC30W08MAE1S5X-1
click to zoom
3D Models
ATC30W08MAE1S5X - CONEC - 3D model - Other - ATC30W08MAE1S5X-1
click to zoom

ATC30W08MAE1S5X Details

  • Manufacturer Part Number:

    ATC30W08MAE1S5X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Conec Corporation

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Gold (Au) over Nickel (Ni)

  • Filter Feature:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATC30W08MAE1S5X Overview

Use the download button to access the ATC30W08MAE1S5X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATC30, or try a keyword search, such as Headers and Edge Type Connectors
