ATCA-06-301M-H footprint, schematic symbol and 3D model by ABRACON

Symbol

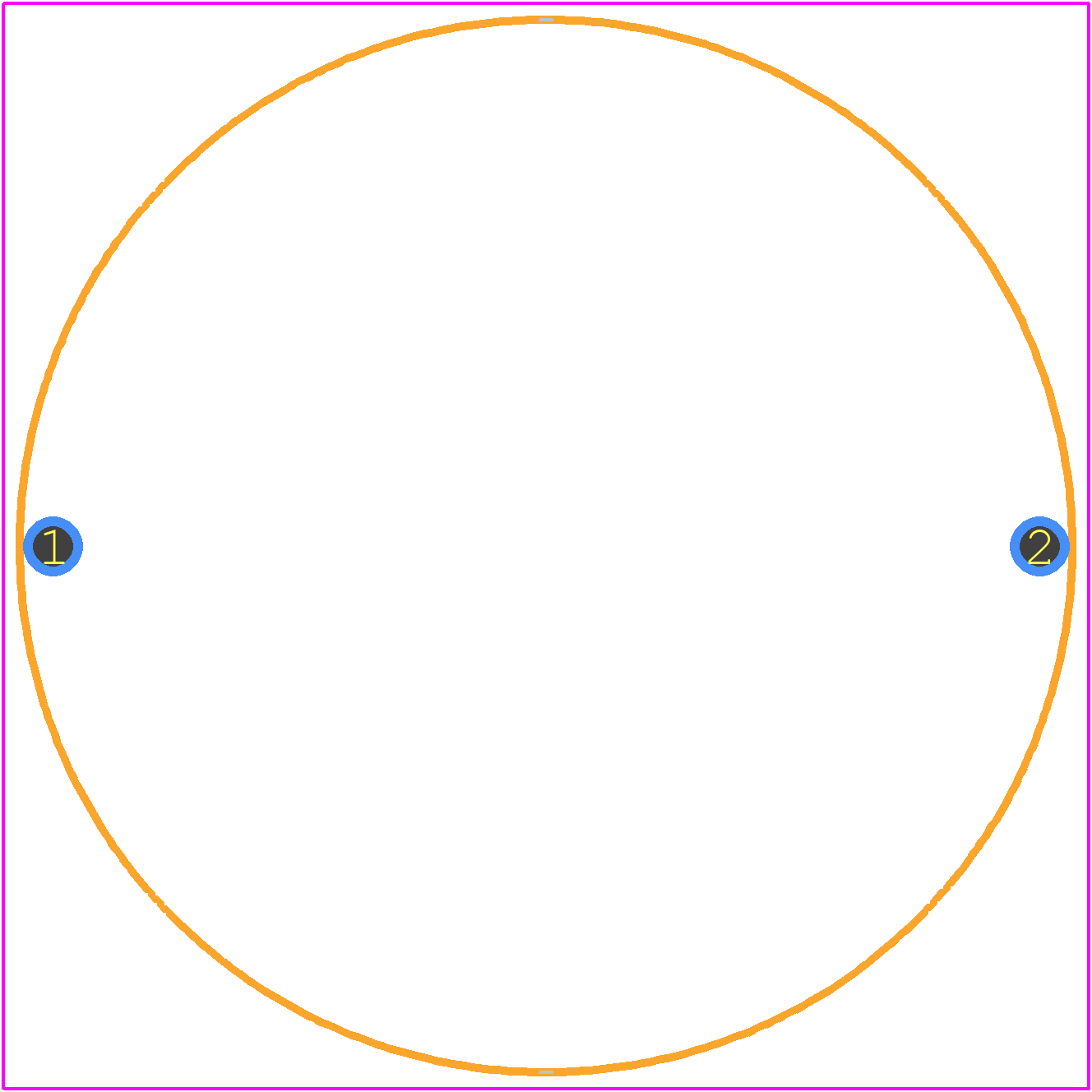

PCB Footprints

3D Models

ATCA-06-301M-H Details

Abracon recommends a land pattern with a pad size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.2mm between the pad and the solder mask.
To ensure reliable startup, Abracon recommends a power-up ramp time of 1ms to 10ms, and a power supply voltage of 1.8V to 3.3V. Additionally, the crystal oscillator should be driven with a CMOS-compatible signal, and the load capacitance should be matched to the specified value.
The ATCA-06-301M-H is rated for operation from -40°C to +85°C, but Abracon recommends derating the frequency tolerance by 0.05ppm/°C for temperatures above 70°C.
Yes, the ATCA-06-301M-H is designed to withstand vibrations up to 20G, but Abracon recommends following the recommended mounting and soldering procedures to ensure reliable operation.
Abracon recommends using a human body model (HBM) ESD protection device with a minimum rating of 2kV, and following proper handling and storage procedures to prevent ESD damage.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ATCA-06-301M-H schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ATCA-, or try a keyword search, such as Fixed Inductors
