ATCA-08-251M-H - ABRACON

Description: 250 µH Unshielded Toroidal Inductor 10 A 27mOhm Max Radial, Horizontal (Open)

Download ATCA-08-251M-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

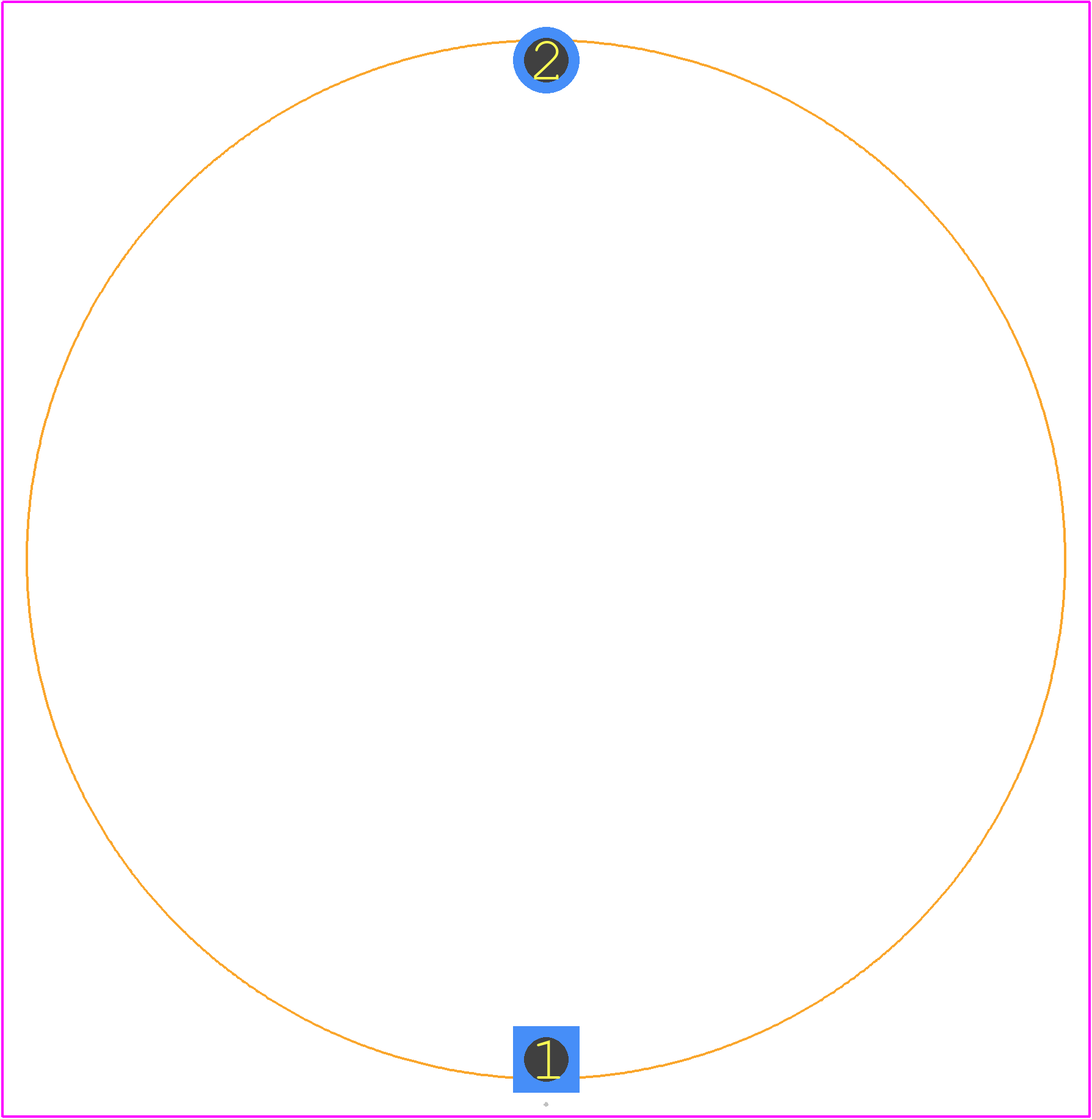

ATCA-08-251M-H - ABRACON PCB footprint - Other - Other - ATCA-08-251M-H-4
click to zoom
3D Models
ATCA-08-251M-H - ABRACON  - 3D model - Other - ATCA-08-251M-H-4
click to zoom

ATCA-08-251M-H Details

  • Manufacturer Part Number:

    ATCA-08-251M-H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7

  • Construction:

    Toroidal

  • Core Material:

    POWDERED IRON

  • DC Resistance:

    0.027 Ω

  • Inductance-Nom (L):

    250 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    1.6 mm

  • Lead Spacing:

    41 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    42.5 mm

  • Package Length:

    21.5 mm

  • Package Style:

    Radial

  • Packing Method:

    Tray

  • Rated Current-Max:

    10 A

  • Shape/Size Description:

    DISK PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Tolerance:

    20%

ATCA-08-251M-H Frequently Asked Questions (FAQs)

  • The recommended termination resistance is 1 kΩ to ensure proper signal integrity and minimize reflections.
  • Yes, the ATCA-08-251M-H is designed to operate in a wide temperature range of -40°C to +85°C, making it suitable for harsh environments.
  • To ensure proper startup, a power-on reset (POR) circuit is recommended to ensure the oscillator starts up correctly and stabilizes within the specified time.
  • A good PCB layout practice is to keep the oscillator as close as possible to the crystal, use a ground plane, and minimize signal traces to reduce noise and EMI.
  • Yes, the ATCA-08-251M-H has a low power consumption of 10 mA typical, making it suitable for battery-powered or low-power designs.
