ATE2D-5F3-10-Z - Nidec Copal

Description: Toggle Switches DPDT, ON-ON, 10mm flatted toggle, 4mm smooth bushing, right angle PC terminals with .2" pitch, .22" height, 50mA @ 60V AC/DC, washable

Download ATE2D-5F3-10-Z Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ATE2D-5F3-10-Z model

Email notifications will be applied after download.

Send part feedback

Symbol

ATE2D-5F3-10-Z - Nidec Copal - PCB symbol

PCB Footprints

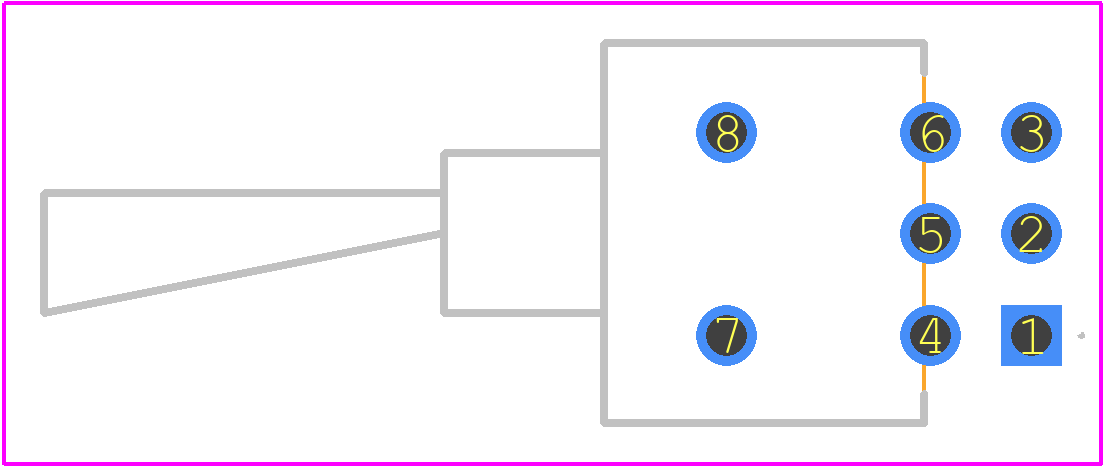

ATE2D-5F3-10-Z - Nidec Copal PCB footprint - Other - Other - ATE2D-5F3-10-Z-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for ATE2D-5F3-10-Z
Part Number ATE2D-5F3-10-Z
Manufacturer Nidec Copal
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - ATE2D-5F3-10-Z-3
Released Date Jun 18, 2026
Last Modified Date Jun 19, 2026 6:08 AM UTC
Pinout / Pin List Click Here (Member Only)

ATE2D-5F3-10-Z Details

Manufacturer Part Number:
ATE2D-5F3-10-Z
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Nidec Copal Electronics Corporation
JESD-609 Code:
e4
Switch Type:
TOGGLE SWITCH
Terminal Finish:
Gold (Au)

Trust Checks

Community Provided

System Verified

Community Approved

ATE2D-5F3-10-Z Overview

Use the download button to access the ATE2D-5F3-10-Z schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ATE2D, or try a keyword search, such as Toggle Switches
