atecc108a-mahda-t - Microchip

Description: EEPROM Crypto Products, ECC 8kb

Download atecc108a-mahda-t Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

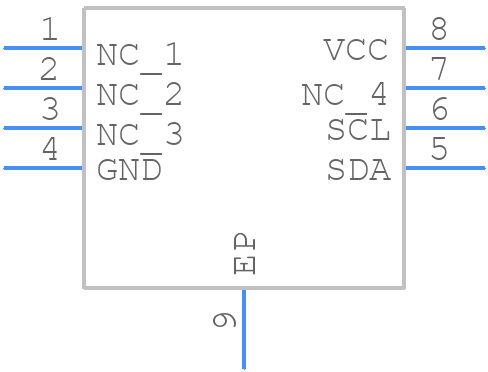

atecc108a-mahda-t - Microchip - PCB symbol
click to zoom
PCB Footprints
atecc108a-mahda-t - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pad UDFN-2021
click to zoom
3D Models
atecc108a-mahda-t - Microchip - 3D model - Small Outline No-lead - 8-pad UDFN-2021
click to zoom

atecc108a-mahda-t Details

  • Manufacturer Part Number:

    ATECC108A-MAHDA-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    UDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

atecc108a-mahda-t Frequently Asked Questions (FAQs)

  • The ATECC108A has a maximum of 10,000 write cycles for the EEPROM and 100,000 write cycles for the OTP (One-Time Programmable) memory.
  • The ATECC108A has a built-in POR circuit that resets the device when the power supply voltage falls below a certain threshold (typically around 2.5V). It also has a brown-out detection feature that resets the device when the power supply voltage drops below a certain level (typically around 2.2V).
  • The recommended clock frequency for the ATECC108A is between 100 kHz and 10 MHz. However, the device can operate at frequencies up to 20 MHz, but with reduced performance and increased power consumption.
  • The ATECC108A has a secure key storage area that can store up to 16 cryptographic keys. The device also has a built-in key management system that allows for key generation, storage, and management, including key wrapping and unwrapping.
  • The ATECC108A has an operating temperature range of -40°C to +85°C, making it suitable for use in a wide range of applications, including industrial, automotive, and consumer electronics.
