ATECC508A-SSHAW-T - Microchip

Description: Security ICs / Authentication ICs ECC 10Kb, I2C 8-SOIC,T&R

Download ATECC508A-SSHAW-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

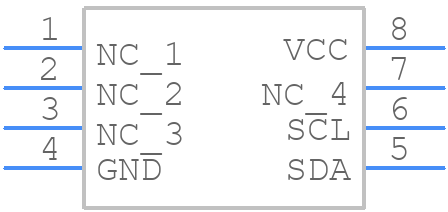

ATECC508A-SSHAW-T - Microchip - PCB symbol
click to zoom
PCB Footprints
ATECC508A-SSHAW-T - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8S1, 8-lead (0.150” Wide Body), Plastic Gull Wing Small Outline (JEDEC SOIC)
click to zoom
3D Models
ATECC508A-SSHAW-T - Microchip - 3D model - Small Outline Packages - 8S1, 8-lead (0.150” Wide Body), Plastic Gull Wing Small Outline (JEDEC SOIC)
click to zoom

ATECC508A-SSHAW-T Details

  • Manufacturer Part Number:

    ATECC508A-SSHAW-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ATECC508A-SSHAW-T Frequently Asked Questions (FAQs)

  • The recommended storage condition for the ATECC508A-SSHAW-T is in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 125°C and humidity below 80%.
  • During soldering, the ATECC508A-SSHAW-T should be handled with care to avoid exposure to excessive heat, moisture, or mechanical stress. Follow the recommended soldering profile and handling procedures to prevent damage.
  • The ATECC508A-SSHAW-T has a maximum of 10,000 write cycles for the EEPROM and 100,000 write cycles for the Key Store.
  • To implement secure boot with the ATECC508A-SSHAW-T, use the device's built-in secure boot functionality, which involves generating a public-private key pair, signing the firmware with the private key, and verifying the signature with the public key during boot-up.
  • Yes, the ATECC508A-SSHAW-T can be used with microcontrollers from other manufacturers, as long as the microcontroller has an I2C or SPI interface and can communicate with the ATECC508A-SSHAW-T according to its protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATECC508A-SSHAW-T Overview

Use the download button to access the ATECC508A-SSHAW-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATECC, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
