ATECC608A-TFLXTLSU - Microchip

Description: CryptoAuthentication 8Pin UDFN TR

Download ATECC608A-TFLXTLSU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

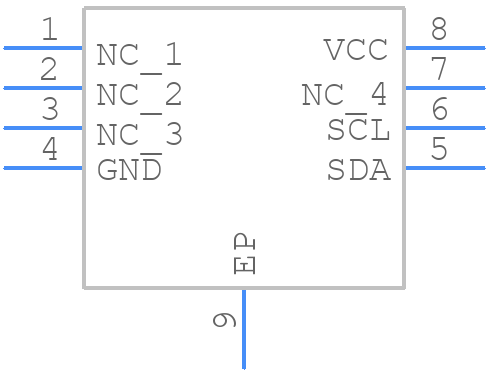

ATECC608A-TFLXTLSU - Microchip - PCB symbol
click to zoom
PCB Footprints
ATECC608A-TFLXTLSU - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead UDFN (Q4B)
click to zoom
3D Models
ATECC608A-TFLXTLSU - Microchip - 3D model - Small Outline No-lead - 8-Lead UDFN (Q4B)
click to zoom

ATECC608A-TFLXTLSU Details

  • Manufacturer Part Number:

    ATECC608A-TFLXTLSU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    UDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2019-09-17

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ATECC608A-TFLXTLSU Frequently Asked Questions (FAQs)

  • The ATECC608A can operate from -40°C to 85°C, making it suitable for a wide range of applications.
  • The ATECC608A stores cryptographic keys in a secure, tamper-evident environment using a combination of hardware and software-based security mechanisms. It also provides key management features such as key generation, storage, and deletion.
  • The ATECC608A supports a range of cryptographic algorithms, including ECC (Elliptic Curve Cryptography), RSA, SHA-2, and AES, making it suitable for a variety of secure applications.
  • The ATECC608A incorporates various countermeasures to protect against side-channel attacks, including constant-time execution of cryptographic algorithms, randomized execution timing, and power analysis countermeasures.
  • Yes, the ATECC608A can be used to implement secure boot mechanisms and validate firmware authenticity, ensuring that only authorized firmware is executed on a device.
