ATECC608A-TNGTLSU-B - Microchip

Description: TRUST FLEX LORAWAN I2C PROVISION

Download ATECC608A-TNGTLSU-B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

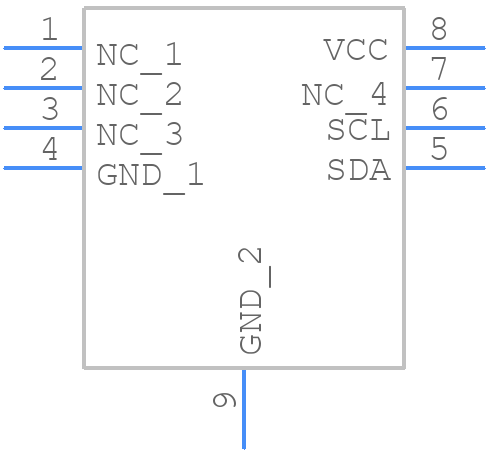

ATECC608A-TNGTLSU-B - Microchip - PCB symbol
click to zoom
PCB Footprints
ATECC608A-TNGTLSU-B - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Ultra Thin Plastic Dual Flat, No Lead Package (Q4B) - 2x3 mm Body [UDFN]
click to zoom
3D Models
ATECC608A-TNGTLSU-B - Microchip - 3D model - Small Outline No-lead - 8-Lead Ultra Thin Plastic Dual Flat, No Lead Package (Q4B) - 2x3 mm Body [UDFN]
click to zoom

ATECC608A-TNGTLSU-B Details

  • Manufacturer Part Number:

    ATECC608A-TNGTLSU-B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ATECC608A-TNGTLSU-B Frequently Asked Questions (FAQs)

  • The recommended storage condition for the ATECC608A-TNGTLSU-B is in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 125°C and humidity below 80%.
  • The ATECC608A-TNGTLSU-B can be configured for I2C or SPI interface by setting the appropriate pins high or low during power-up. Refer to the datasheet for specific pin configurations.
  • The maximum operating frequency of the ATECC608A-TNGTLSU-B is 20 MHz for I2C and 25 MHz for SPI.
  • Firmware updates on the ATECC608A-TNGTLSU-B can be performed using the CryptoAuthLib library and the Microchip CryptoAuth Xplained Pro evaluation kit.
  • The ATECC608A-TNGTLSU-B has a secure boot mechanism that ensures only authorized firmware can be loaded, and it also has a secure key storage feature that prevents unauthorized access to sensitive data.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATECC608A-TNGTLSU-B Overview

Use the download button to access the ATECC608A-TNGTLSU-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATECC, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
