ATECC608B-TFLXTLSS-PROTO - Microchip

Description: Security ICs / Authentication ICs Trust Flex TLS, Provisioned Proto Typing, 8-SOIC (10 bulk)

Download ATECC608B-TFLXTLSS-PROTO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

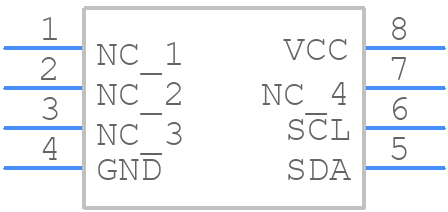

Symbol
ATECC608B-TFLXTLSS-PROTO - Microchip - PCB symbol
click to zoom
PCB Footprints
ATECC608B-TFLXTLSS-PROTO - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD SOIC-ren1
click to zoom
3D Models
ATECC608B-TFLXTLSS-PROTO - Microchip - 3D model - Small Outline Packages - 8-LEAD SOIC-ren1
click to zoom

ATECC608B-TFLXTLSS-PROTO Details

  • Manufacturer Part Number:

    ATECC608B-TFLXTLSS-PROTO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Clock Frequency-Max:

    1 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.23

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ATECC608B-TFLXTLSS-PROTO Frequently Asked Questions (FAQs)

  • The recommended storage condition for the ATECC608B-TFLXTLS-PROTO is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
  • The ATECC608B-TFLXTLS-PROTO can be configured for I2C or SPI interface by setting the appropriate pins high or low during power-up. Refer to the datasheet for specific pin configurations.
  • The maximum operating frequency of the ATECC608B-TFLXTLS-PROTO is 20 MHz for I2C and 25 MHz for SPI.
  • To implement secure boot with the ATECC608B-TFLXTLS-PROTO, you need to generate a secure boot key pair, store the private key in the ATECC608B, and use the public key to verify the authenticity of the firmware. Refer to the Microchip CryptoAuthLib library for implementation details.
  • The ATECC608B-TFLXTLS-PROTO can store up to 16 keys, including private and public keys, certificates, and other cryptographic materials.
