Technical Content
Part Image

ATECC608B-TFLXTLSU-PROTO - Microchip

Description: • Specified Configuration Zone with limited selectable options. • I/O Options – I2C Interface with One-Time Changeable I2C Address – Single Wire Interface (SWI) • One Permanent Primary P-256 Elliptic Curve Cryptography (ECC secp256r1) Private Key Fixed at Manufacturing Time • One Internal Sign Private Key for Key Attestation • Three Secondary P-256 ECC Private Keys that Can Be Regenerated by the User • Signer Public Key from Signer Certificate • Public Key Validation Support • One Customizable Symm

Download ATECC608B-TFLXTLSU-PROTO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

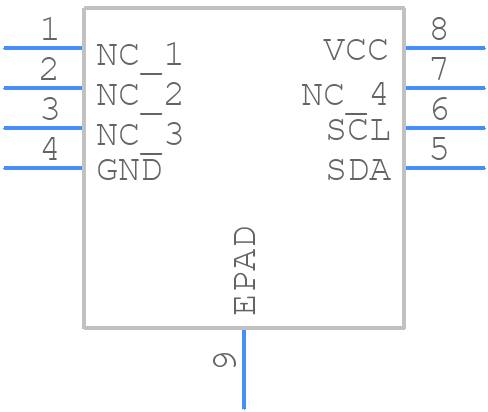

ATECC608B-TFLXTLSU-PROTO - Microchip - PCB symbol
click to zoom
PCB Footprints
ATECC608B-TFLXTLSU-PROTO - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - ATECC608B-TFLXTLSU-PROTO
click to zoom
3D Models
ATECC608B-TFLXTLSU-PROTO - Microchip - 3D model - Small Outline No-lead - ATECC608B-TFLXTLSU-PROTO
click to zoom

ATECC608B-TFLXTLSU-PROTO Details

  • Manufacturer Part Number:

    ATECC608B-TFLXTLSU-PROTO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Taiwan, Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Clock Frequency-Max:

    1 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ATECC608B-TFLXTLSU-PROTO Frequently Asked Questions (FAQs)

  • The recommended storage condition for the ATECC608B-TFLXTLSU-PROTO is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
  • The ATECC608B-TFLXTLSU-PROTO can be configured for I2C or SPI interface by setting the appropriate pins high or low during power-up. Refer to the datasheet for specific pin configurations.
  • The maximum operating frequency of the ATECC608B-TFLXTLSU-PROTO is 20 MHz for I2C and 25 MHz for SPI.
  • Firmware updates on the ATECC608B-TFLXTLSU-PROTO can be performed using the CryptoAuthLib library and the Microchip CryptoAuth Xplained Pro evaluation kit.
  • The ATECC608B-TFLXTLSU-PROTO features a secure boot mechanism, secure key storage, and cryptographic accelerators for AES, SHA, and HMAC, making it suitable for secure authentication and data encryption applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATECC608B-TFLXTLSU-PROTO Overview

Use the download button to access the ATECC608B-TFLXTLSU-PROTO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATECC, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
