- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ATQ224
- Part Number ATQ224
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Dual-In-Line Sockets

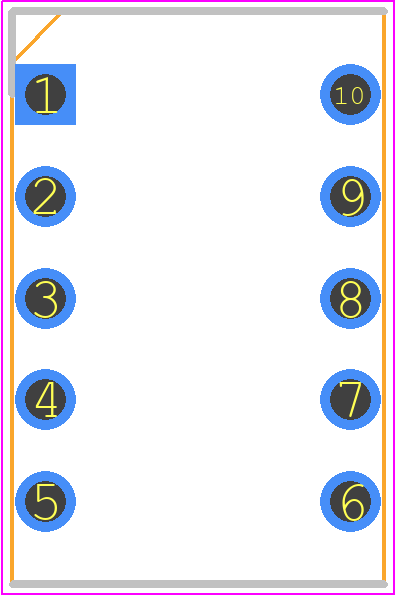

- Footprint Name Dual-In-Line Sockets - TQ2
- Released Date Oct 16, 2025
- Last Modified Date Jan 21, 2026 3:14 PM UTC
- Pinout / Pin List Click Here (Member Only)
ATQ224 Details
-
Manufacturer Part Number:
ATQ224
-
Manufacturer:
Panasonic Electronic Components
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
ATQ224 Overview

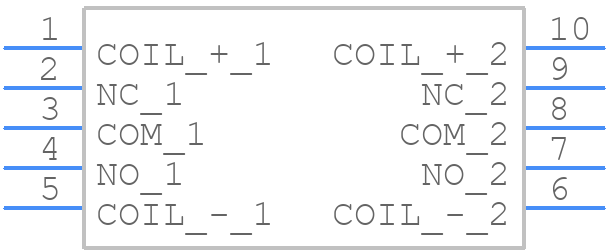

Use the download button to access the ATQ224 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATQ22,
or try a keyword search, such as Power/Signal Relays
