ATSAM4N8AA-MU - Microchip

Description: ARM Microcontrollers - MCU QFN, GREEN, IND TEMP, MRL A

Download ATSAM4N8AA-MU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

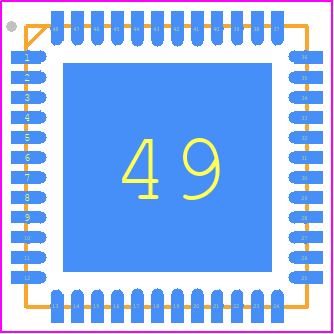

ATSAM4N8AA-MU - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-pad QFN _2020
click to zoom
3D Models
ATSAM4N8AA-MU - Microchip  - 3D model - Quad Flat No-Lead - 48-pad QFN _2020
click to zoom

ATSAM4N8AA-MU Details

  • Manufacturer Part Number:

    ATSAM4N8AA-MU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HVQCCN, LCC48,.27SQ,20

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Atmel Corporation

  • Has ADC:

    YES

  • Additional Feature:

    ALSO HAVING 8 KBYTES ROM WITH EMBEDDED BOOT LOADER AND USART SUPPORTS SPI.

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M4

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of I/O Lines:

    34

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    65536

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.9 mm

  • Speed:

    100 MHz

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.08 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
