ATSAMA5D21B-CU - Microchip

ATSAMA5D21B-CU Details

• Manufacturer Part Number:

  ATSAMA5D21B-CU

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

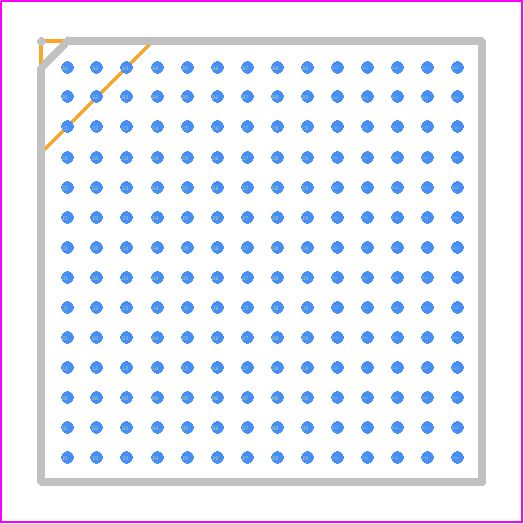

• Package Description:

  TFBGA-196

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Address Bus Width:

  26

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  50 MHz

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B196

• JESD-609 Code:

  e2

• Length:

  11 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  32

• Number of External Interrupts:

  1

• Number of Serial I/Os:

  1

• Number of Terminals:

  196

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFBGA

• Package Equivalence Code:

  BGA196,14X14,30

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• RAM (words):

  131072

• Screening Level:

  TS 16949

• Seated Height-Max:

  1.2 mm

• Speed:

  500 MHz

• Supply Voltage-Max:

  1.32 V

• Supply Voltage-Min:

  1.1 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.75 mm

• Terminal Position:

  BOTTOM

• Width:

  11 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
