ATSAMA5D22C-CN - Microchip

Description: Microprocessors - MPU BGA GRN EXT MRLC

Download ATSAMA5D22C-CN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ATSAMA5D22C-CN - Microchip - PCB symbol
click to zoom
PCB Footprints

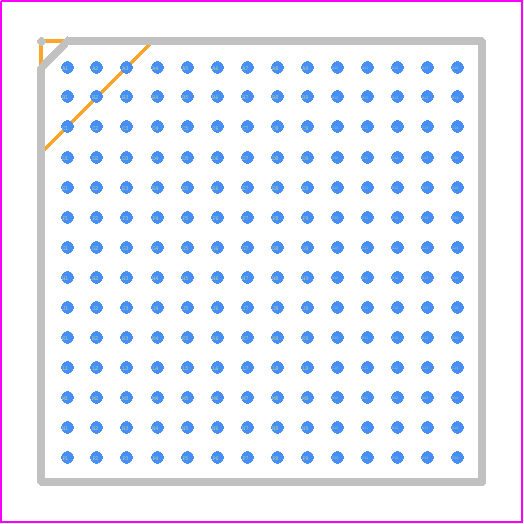

ATSAMA5D22C-CN - Microchip PCB footprint - BGA - BGA - TFBGA
click to zoom
3D Models
ATSAMA5D22C-CN - Microchip - 3D model - BGA - TFBGA
click to zoom

ATSAMA5D22C-CN Details

  • Manufacturer Part Number:

    ATSAMA5D22C-CN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    196

  • Manufacturer Package Code:

    TFBGA-196

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    11 Weeks

  • Date Of Intro:

    2017-05-22

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

ATSAMA5D22C-CN Frequently Asked Questions (FAQs)

  • The ATSAMA5D22C-CN can operate in the industrial temperature range of -40°C to +85°C.
  • The clock system on the ATSAMA5D22C-CN can be configured using the Power Management Controller (PMC) and the Clock Controller (CKGR). The PMC is used to select the clock source, while the CKGR is used to configure the clock frequency and dividers. Refer to the ATSAMA5D22C-CN datasheet and the Microchip SAM5D2 Xplained Ultra evaluation kit documentation for more information.
  • The ATSAMA5D22C-CN's CPU can operate at a maximum frequency of 500 MHz.
  • The ATSAMA5D22C-CN's peripherals can be used by configuring the corresponding peripheral controller registers and using the Microchip-provided software libraries and drivers. Refer to the ATSAMA5D22C-CN datasheet and the Microchip SAM5D2 Xplained Ultra evaluation kit documentation for more information.
  • The power consumption of the ATSAMA5D22C-CN depends on the operating frequency, voltage, and peripheral usage. The typical power consumption is around 150 mA at 500 MHz and 1.2V. Refer to the ATSAMA5D22C-CN datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATSAMA5D22C-CN Overview

Use the download button to access the ATSAMA5D22C-CN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATSAM, or try a keyword search, such as Microprocessors

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
