ATSAMA5D22C-CU - Microchip

Description: MICROCHIP - ATSAMA5D22C-CU - MPU, ARM CORTEX-A5, 500MHZ, TFBGA-196

Download ATSAMA5D22C-CU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ATSAMA5D22C-CU - Microchip - PCB symbol
click to zoom
PCB Footprints

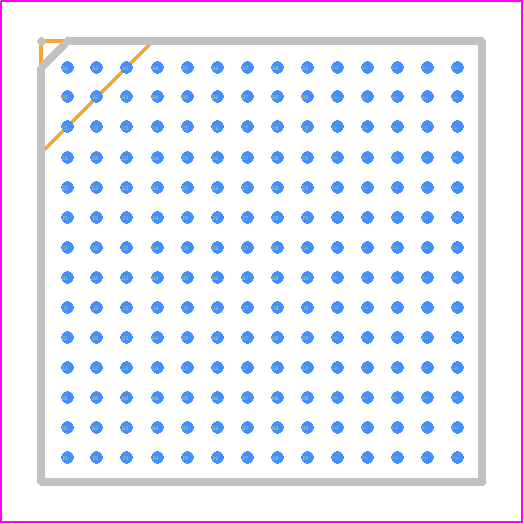

ATSAMA5D22C-CU - Microchip PCB footprint - BGA - BGA - TFBGA
click to zoom
3D Models
ATSAMA5D22C-CU - Microchip - 3D model - BGA - TFBGA
click to zoom

ATSAMA5D22C-CU Details

  • Manufacturer Part Number:

    ATSAMA5D22C-CU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    196

  • Manufacturer Package Code:

    TFBGA-196

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-05-22

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

ATSAMA5D22C-CU Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ATSAMA5D22C-CU is 500 MHz.
  • The ATSAMA5D22C-CU has 128 KB of internal SRAM and 256 KB of internal ROM.
  • The ATSAMA5D22C-CU can connect up to 128 MB of external SDRAM and 256 MB of external NAND Flash.
  • Yes, the ATSAMA5D22C-CU has a built-in 10/100 Mbps Ethernet MAC.
  • The ATSAMA5D22C-CU has a range of interfaces, including USB, UART, SPI, I2C, I2S, and SD/MMC.
