ATSAMA5D27-WLSOM1 - Microchip

Description: SAMA5D2 Wireless SOM - Embedded Module ARM® Cortex®-A5 500MHz 256MB 8MB

Download ATSAMA5D27-WLSOM1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ATSAMA5D27-WLSOM1 - Microchip - PCB symbol
click to zoom
PCB Footprints

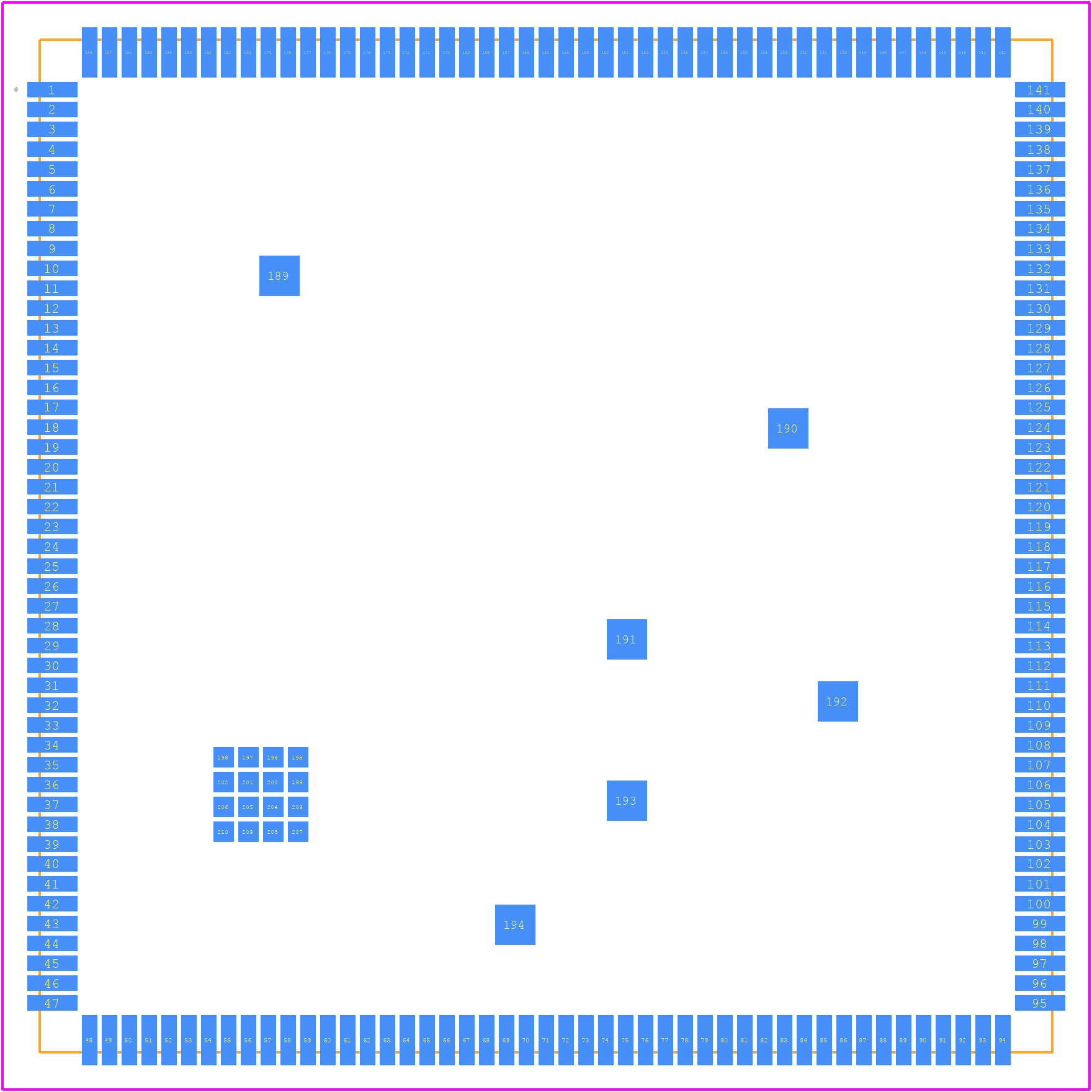

ATSAMA5D27-WLSOM1 - Microchip PCB footprint - Other - Other - ATSAMA5D27-WLSOM1-5
click to zoom
3D Models
ATSAMA5D27-WLSOM1 - Microchip - 3D model - Other - ATSAMA5D27-WLSOM1-5
click to zoom

ATSAMA5D27-WLSOM1 Details

  • Manufacturer Part Number:

    ATSAMA5D27-WLSOM1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE

  • Pin Count:

    188

  • Manufacturer Package Code:

    MODULE-188

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    S-XXMA-N188

  • Length:

    40.8 mm

  • Number of Terminals:

    188

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    3.387 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    40.8 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

ATSAMA5D27-WLSOM1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ATSAMA5D27-WLSOM1 is -40°C to 85°C.
  • The clock settings for the ATSAMA5D27-WLSOM1 can be configured using the Clock Controller (CKGR) registers. Refer to the ATSAMA5D27 datasheet and the Microchip SAMA5D2 Xplained Ultra evaluation kit documentation for more information.
  • The maximum frequency of the ATSAMA5D27-WLSOM1 is 500 MHz.
  • The SD/MMC interface on the ATSAMA5D27-WLSOM1 can be used by configuring the SD/MMC controller registers and using the SD/MMC protocol. Refer to the ATSAMA5D27 datasheet and the Microchip SAMA5D2 Xplained Ultra evaluation kit documentation for more information.
  • The power consumption of the ATSAMA5D27-WLSOM1 varies depending on the operating mode and frequency. Refer to the ATSAMA5D27 datasheet for more information on power consumption.
