ATSAMA5D28C-LD2G-CU - Microchip

Description: Microprocessors - MPU CORTEX-A5 MPU,2GBIT LPDDR2,BGA,IND TEMP,PCI

Download ATSAMA5D28C-LD2G-CU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ATSAMA5D28C-LD2G-CU - Microchip - PCB symbol
click to zoom
PCB Footprints

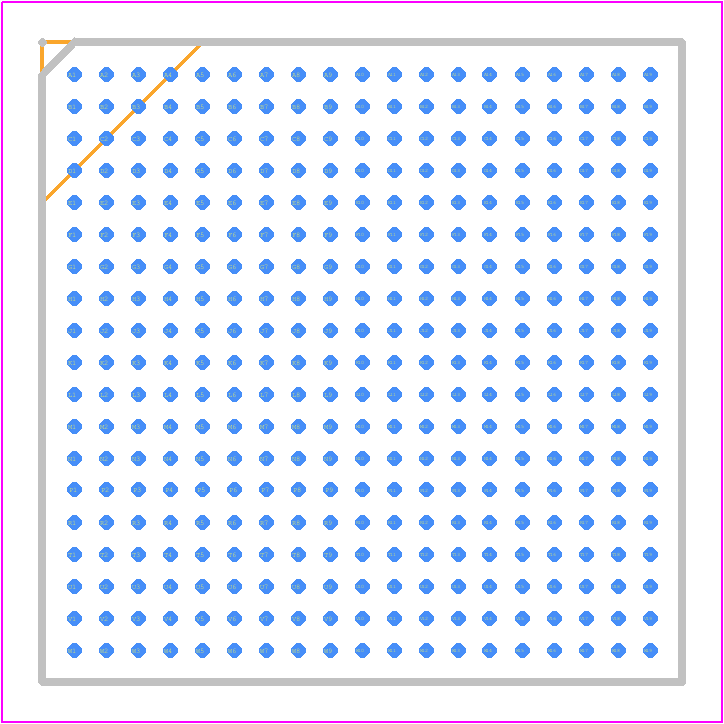

ATSAMA5D28C-LD2G-CU - Microchip PCB footprint - BGA - BGA - 361-Ball Thin Fine Pitch Ball Grid Array (DYB) - 16x16 mm Body [TFBGA]
click to zoom
3D Models
ATSAMA5D28C-LD2G-CU - Microchip - 3D model - BGA - 361-Ball Thin Fine Pitch Ball Grid Array (DYB) - 16x16 mm Body [TFBGA]
click to zoom

ATSAMA5D28C-LD2G-CU Details

  • Manufacturer Part Number:

    ATSAMA5D28C-LD2G-CU

  • Part Life Cycle Code:

    Active

  • Pin Count:

    361

  • Manufacturer Package Code:

    TFBGA-361

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2018-12-14

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • uPs/uCs/Peripheral ICs Type:

    SOC

ATSAMA5D28C-LD2G-CU Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ATSAMA5D28C-LD2G-CU is -40°C to +105°C.
  • The clock source for the ATSAMA5D28C-LD2G-CU can be configured using the System Clock Control (SCC) registers. The device can use an external clock source, such as a crystal oscillator, or an internal clock source, such as the RC oscillator.
  • The maximum frequency for the ATSAMA5D28C-LD2G-CU is 528 MHz.
  • The ATSAMA5D28C-LD2G-CU has several power management modes, including Idle, Sleep, and Shutdown. These modes can be configured using the Power Management Controller (PMC) registers. Additionally, the device has a built-in Brown-Out Detector (BOD) that can be used to detect power supply voltage drops.
  • The ATSAMA5D28C-LD2G-CU has 128 KB of SRAM and 2 MB of Flash memory.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATSAMA5D28C-LD2G-CU Overview

Use the download button to access the ATSAMA5D28C-LD2G-CU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATSAM, or try a keyword search, such as Microprocessors
