ATSHA204A-MAHCZ-S - Microchip

Description: Security ICs / Authentication ICs SHA256, 1-WIRE, 8-UDFN, 3K REEL

Download ATSHA204A-MAHCZ-S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

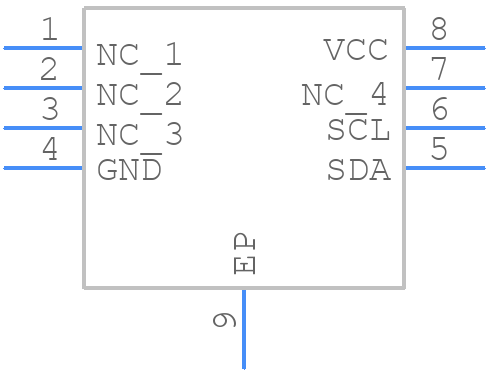

ATSHA204A-MAHCZ-S - Microchip - PCB symbol
click to zoom
PCB Footprints
ATSHA204A-MAHCZ-S - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead UDFN (Q4B)
click to zoom
3D Models
ATSHA204A-MAHCZ-S - Microchip - 3D model - Small Outline No-lead - 8-Lead UDFN (Q4B)
click to zoom

ATSHA204A-MAHCZ-S Details

  • Manufacturer Part Number:

    ATSHA204A-MAHCZ-S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2018-04-04

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • JESD-30 Code:

    R-PQCC-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ATSHA204A-MAHCZ-S Frequently Asked Questions (FAQs)

  • The ATSHA204A has a limited number of write cycles, typically around 10,000 to 100,000, depending on the specific device and usage. Exceeding this limit can cause device failure.
  • The OTP area should be programmed using a secure protocol, such as SSL/TLS, and stored in a secure environment. It's recommended to use a secure key management system to manage the OTP area.
  • The recommended clock frequency for the ATSHA204A is between 100 kHz to 400 kHz. Operating the device outside of this range may affect its performance and reliability.
  • Implement error handling mechanisms to detect and handle errors during cryptographic operations. This may include retry mechanisms, error logging, and notification systems.
  • The ATSHA204A is optimized for SHA-256, but it can be used with other cryptographic algorithms, such as HMAC and AES, with some limitations. However, this may require additional software or hardware components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATSHA204A-MAHCZ-S Overview

Use the download button to access the ATSHA204A-MAHCZ-S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATSHA, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
