ATTPM20P-H6MA1-10 - Microchip

Description: Trusted Platform Module 8-Pin UDFN EP T/R

Download ATTPM20P-H6MA1-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

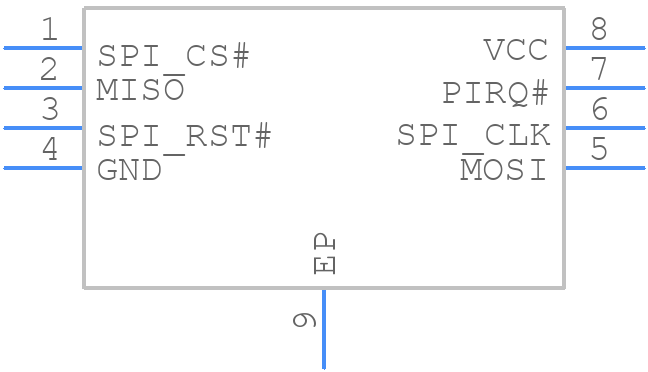

ATTPM20P-H6MA1-10 - Microchip - PCB symbol
click to zoom
PCB Footprints
ATTPM20P-H6MA1-10 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - ATTPM20P-H6MA1-10
click to zoom
3D Models
ATTPM20P-H6MA1-10 - Microchip - 3D model - Small Outline No-lead - ATTPM20P-H6MA1-10
click to zoom

ATTPM20P-H6MA1-10 Details

  • Manufacturer Part Number:

    ATTPM20P-H6MA1-10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Taiwan, Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    34 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Bus Compatibility:

    SPI

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ATTPM20P-H6MA1-10 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power consumption, use a heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials to improve heat transfer.
  • The recommended soldering conditions for the ATTPM20P-H6MA1-10 are a peak temperature of 260°C, a dwell time of 30 seconds, and a soldering iron temperature of 350°C. It is also recommended to use a solder with a melting point of 217°C or higher.
  • To troubleshoot issues with the device's power management features, use a logic analyzer or oscilloscope to monitor the device's power rails and control signals. Check the device's datasheet for specific troubleshooting guidelines and consult with Microchip's technical support team if necessary.
  • Using a different voltage regulator or power supply may affect the device's performance, power consumption, and thermal characteristics. Ensure that the alternative voltage regulator or power supply meets the device's power requirements and is compatible with the device's operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATTPM20P-H6MA1-10 Overview

Use the download button to access the ATTPM20P-H6MA1-10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATTPM, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
