ATWILC3000A-MU-T042 - Microchip

Description: RF Transceiver ATWILC3000 802.11 b/g/n + Bluetooth 5 IC

Download ATWILC3000A-MU-T042 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

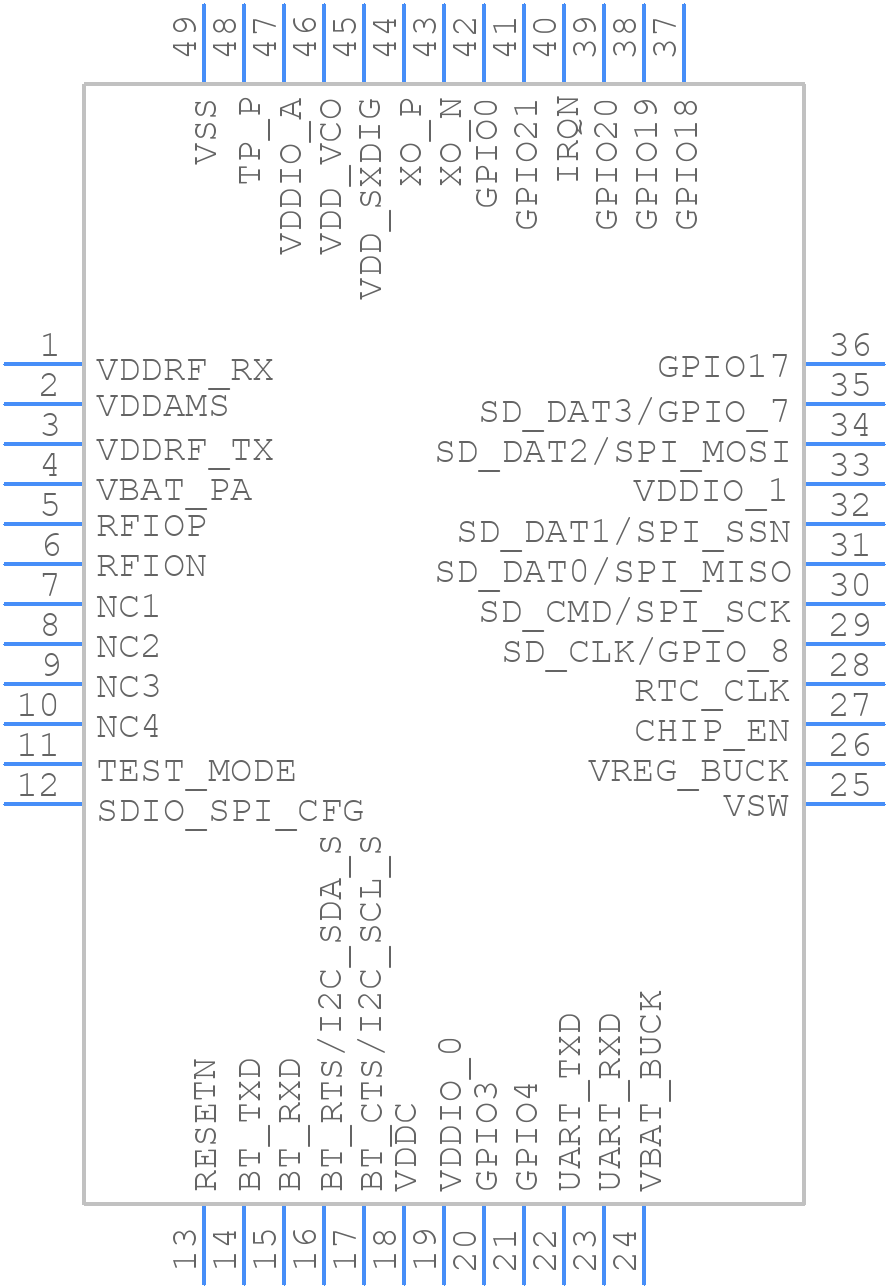

ATWILC3000A-MU-T042 - Microchip - PCB symbol
click to zoom
PCB Footprints
ATWILC3000A-MU-T042 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-pin QFN package
click to zoom
3D Models
ATWILC3000A-MU-T042 - Microchip - 3D model - Quad Flat No-Lead - 48-pin QFN package
click to zoom

ATWILC3000A-MU-T042 Details

  • Manufacturer Part Number:

    ATWILC3000A-MU-T042

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

ATWILC3000A-MU-T042 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ATWILC3000A-MU-T042 is -40°C to +85°C.
  • To configure the ATWILC3000A-MU-T042 for Wi-Fi Direct mode, you need to use the Wi-Fi Direct API provided by Microchip. You can refer to the ATWILC3000A-MU-T042 software development kit (SDK) for more information.
  • Yes, the ATWILC3000A-MU-T042 can be used with non-Microchip microcontrollers, but you may need to develop custom firmware and drivers to interface with the module.
  • The ATWILC3000A-MU-T042 supports a maximum data transfer rate of up to 72.2 Mbps.
  • Firmware updates on the ATWILC3000A-MU-T042 can be performed using the ATWILC3000A-MU-T042 software development kit (SDK) and a serial interface such as UART or SPI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATWILC3000A-MU-T042 Overview

Use the download button to access the ATWILC3000A-MU-T042 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATWIL, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
