Microchip provides a recommended antenna design guide in the ATWINC1500 Hardware Design Guidelines document, which includes a detailed layout and component list for a PCB antenna. Additionally, the module can be used with an external antenna, and Microchip recommends following the antenna selection and placement guidelines in the datasheet.
The ATWINC1500 supports WPA2-PSK and WPA3-PSK encryption methods. To implement secure Wi-Fi connectivity, follow the Wi-Fi security guidelines in the ATWINC1500 Wi-Fi Security Application Note, which includes examples of secure socket layer (SSL) and transport layer security (TLS) implementations.
The power consumption of the ATWINC1500 varies depending on the operating mode. In transmit mode, the module consumes around 240mA, while in receive mode it consumes around 140mA. In sleep mode, the power consumption is typically around 5mA. For more detailed power consumption information, refer to the ATWINC1500 datasheet and the ATWINC1500 Power Consumption Application Note.
To troubleshoot Wi-Fi connectivity issues, follow the troubleshooting guidelines in the ATWINC1500 Wi-Fi Troubleshooting Application Note, which includes steps to check the module's configuration, Wi-Fi network settings, and antenna performance. Additionally, use the ATWINC1500's built-in debug features, such as the UART debug interface, to monitor the module's status and error messages.
Yes, the ATWINC1500 can be used with an external MCU. The module communicates with the MCU through a SPI or UART interface. The MCU should have a minimum of 256KB of flash memory and 64KB of RAM to run the ATWINC1500's firmware and handle Wi-Fi connectivity. Additionally, the MCU should have a clock speed of at least 10MHz to ensure reliable communication with the module.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ATWINC1500-MR210PB1140 Overview

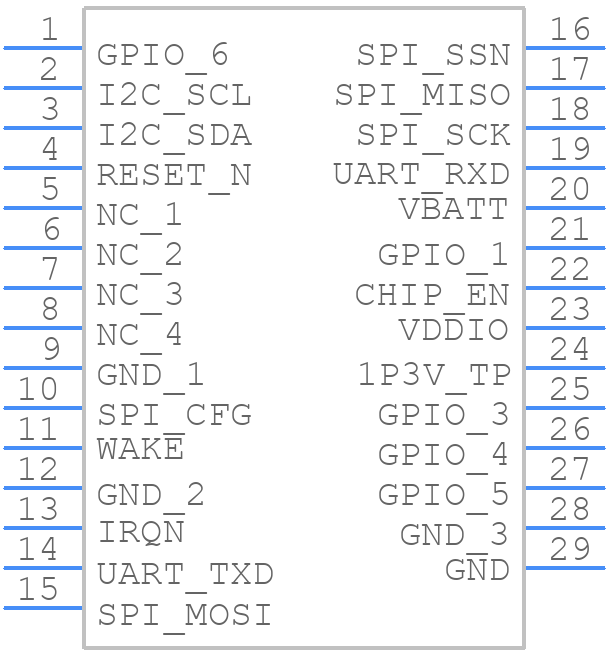

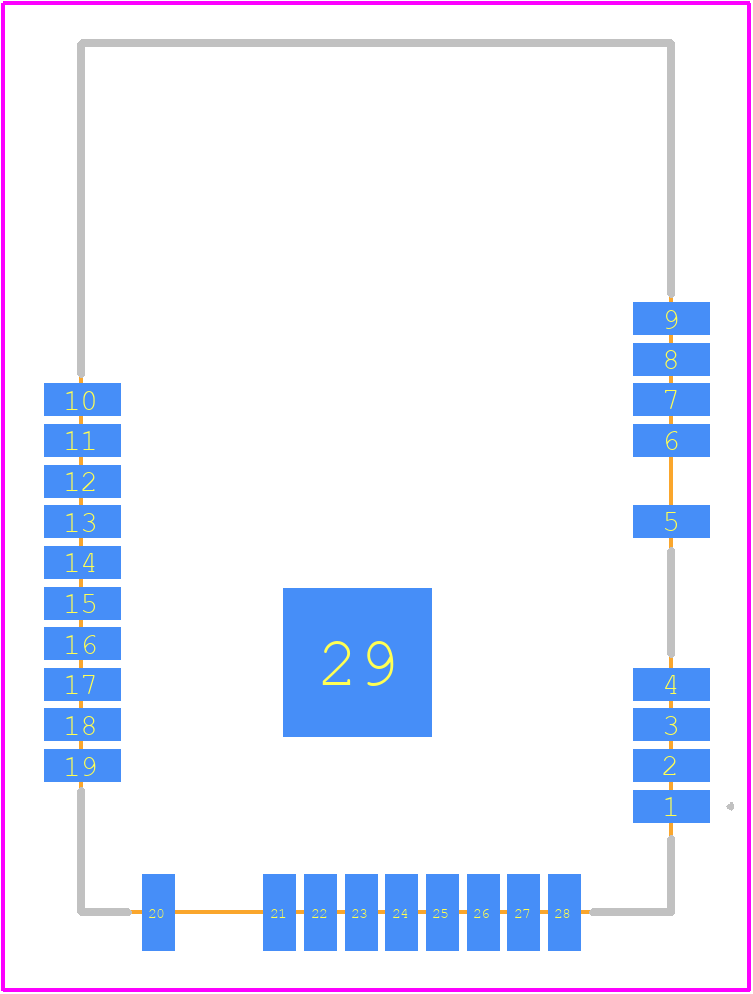

Use the download button to access the ATWINC1500-MR210PB1140 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATWIN,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
