ATWINC1500-MR210PB1172 - Microchip

Description: WiFi Modules (802.11) SmartConnect ATWINC1500B-MU-T Mod

Download ATWINC1500-MR210PB1172 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

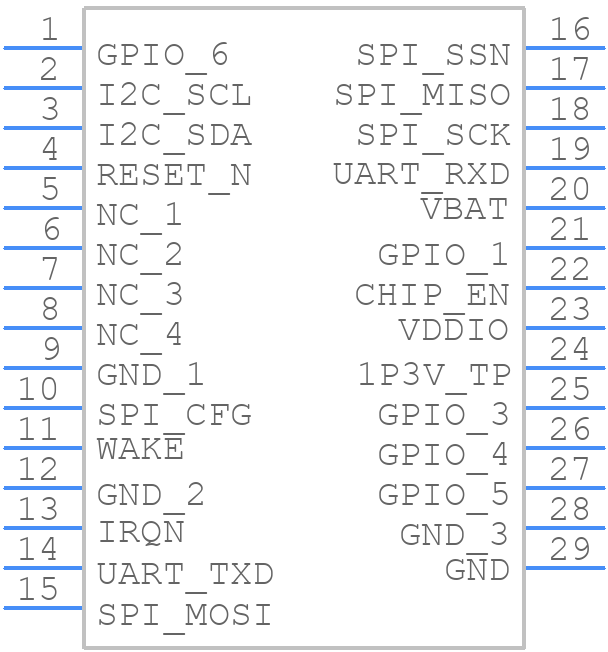

ATWINC1500-MR210PB1172 - Microchip - PCB symbol
click to zoom
PCB Footprints

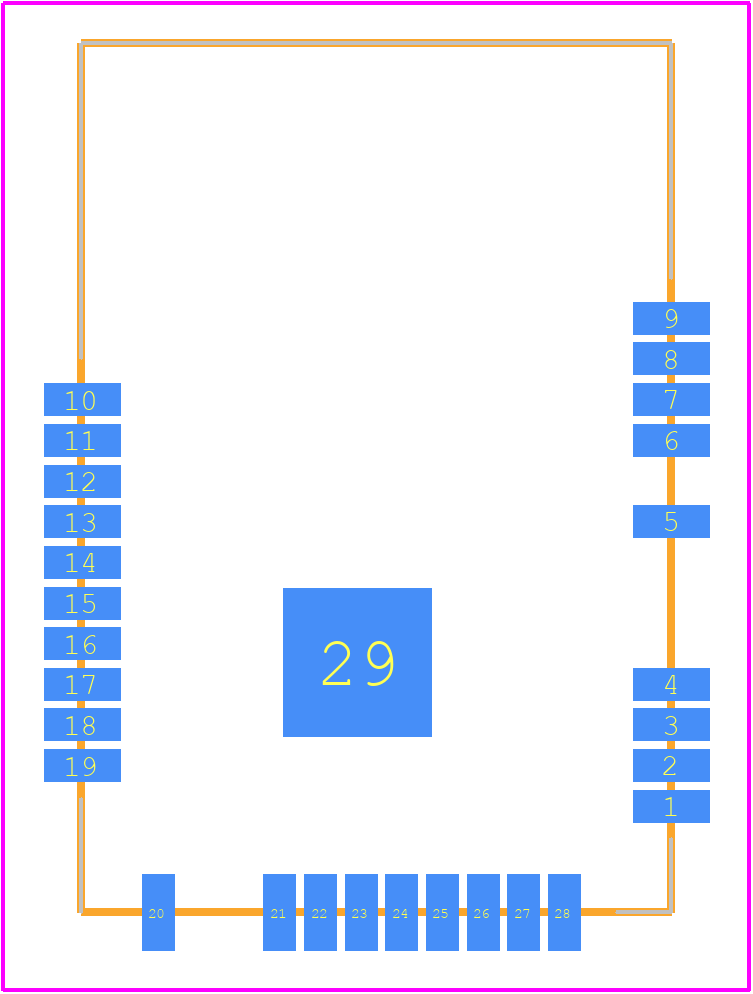

ATWINC1500-MR210PB1172 - Microchip PCB footprint - Other - Other - ATWINC1500-MR210PB1172-1
click to zoom
3D Models
ATWINC1500-MR210PB1172 - Microchip - 3D model - Other - ATWINC1500-MR210PB1172-1
click to zoom

ATWINC1500-MR210PB1172 Details

  • Manufacturer Part Number:

    ATWINC1500-MR210PB1172

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    MODULE-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • JESD-30 Code:

    R-XXMA-N28

  • Length:

    21.72 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.113 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    14.73 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

ATWINC1500-MR210PB1172 Frequently Asked Questions (FAQs)

  • The maximum transmit power of the ATWINC1500-MR210PB1172 module is +19.5 dBm.
  • Yes, the ATWINC1500-MR210PB1172 module supports Wi-Fi Direct, which allows for device-to-device connections without the need for a wireless access point.
  • The operating temperature range of the ATWINC1500-MR210PB1172 module is -40°C to +85°C.
  • Yes, the ATWINC1500-MR210PB1172 module is designed for low power consumption, making it suitable for battery-powered devices. It has a low power sleep mode and can wake up quickly to transmit or receive data.
  • Yes, the ATWINC1500-MR210PB1172 module supports WPA2-PSK (AES) and WPA3-PSK (SAE) encryption for secure Wi-Fi connections.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ATWINC1500-MR210PB1172 Overview

Use the download button to access the ATWINC1500-MR210PB1172 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATWIN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
