ATWINC1500-MR210PB1954 - Microchip

Description: MICROCHIP - ATWINC1500-MR210PB1954 - SMART CONNECT IOT MODULE, 2.412-2.472GHZ

Download ATWINC1500-MR210PB1954 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

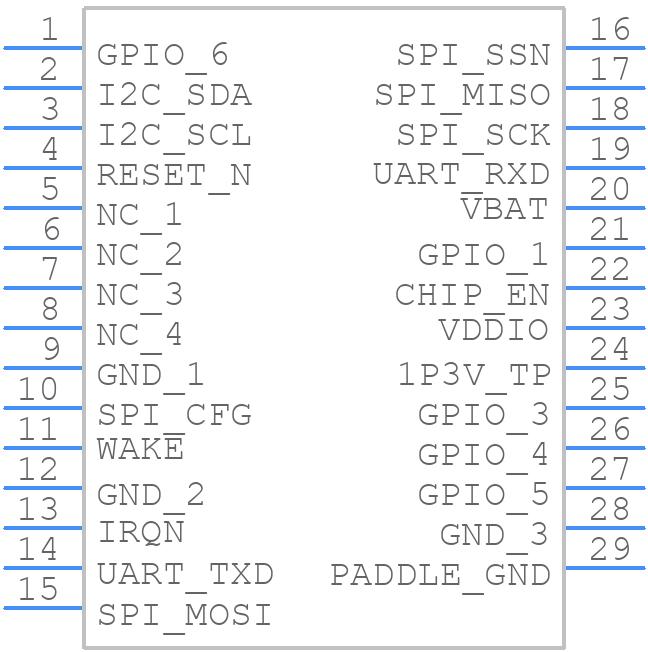

ATWINC1500-MR210PB1954 - Microchip - PCB symbol
click to zoom
PCB Footprints

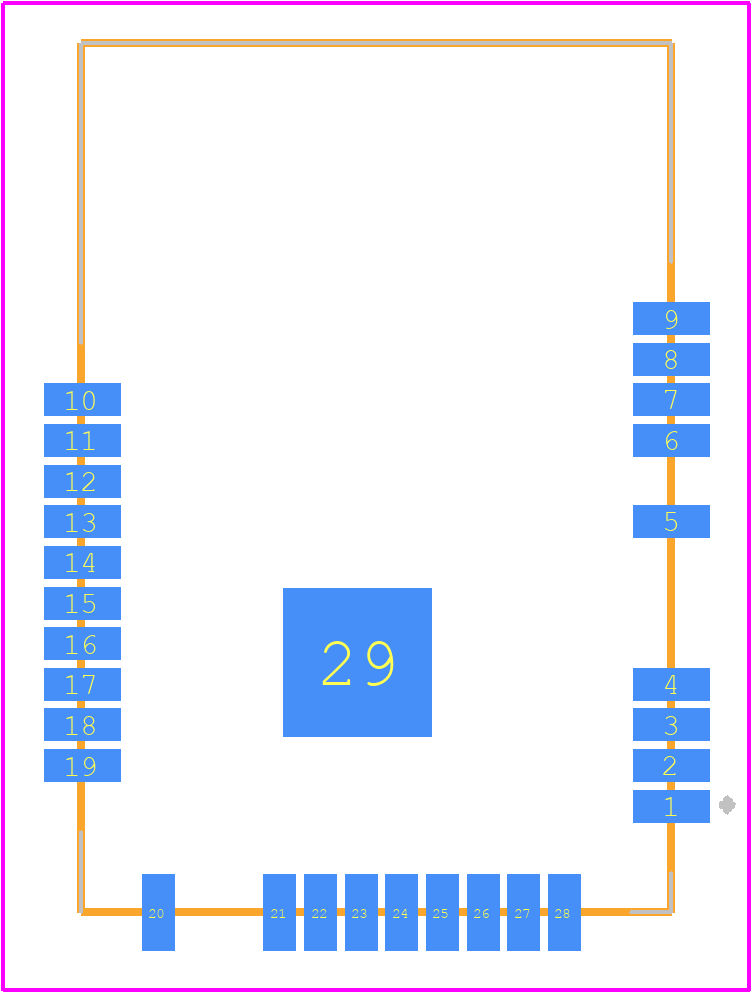

ATWINC1500-MR210PB1954 - Microchip PCB footprint - Other - Other - ATWINC1500-MR210UB1954-2
click to zoom
3D Models
ATWINC1500-MR210PB1954 - Microchip - 3D model - Other - ATWINC1500-MR210UB1954-2
click to zoom

ATWINC1500-MR210PB1954 Details

  • Manufacturer Part Number:

    ATWINC1500-MR210PB1954

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    MODULE-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    R-XXMA-N28

  • Length:

    21.72 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.113 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    14.73 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

ATWINC1500-MR210PB1954 Frequently Asked Questions (FAQs)

  • The operating temperature range of the ATWINC1500-MR210PB1954 module is -40°C to +85°C.
  • The ATWINC1500-MR210PB1954 module can be configured for Wi-Fi networking using the AT commands provided in the datasheet. You can use a serial terminal to send AT commands to the module to configure Wi-Fi settings, such as setting the Wi-Fi mode, scanning for access points, and connecting to a network.
  • The maximum data transfer rate of the ATWINC1500-MR210PB1954 module is up to 72.2 Mbps.
  • The firmware of the ATWINC1500-MR210PB1954 module can be updated using the Microchip's Wireless Utility software. You can download the latest firmware from the Microchip website and follow the instructions provided in the user manual to update the firmware.
  • The power consumption of the ATWINC1500-MR210PB1954 module varies depending on the operating mode. In transmit mode, the power consumption is around 240 mA, and in receive mode, it is around 140 mA. In sleep mode, the power consumption is around 20 μA.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATWINC1500-MR210PB1954 Overview

Use the download button to access the ATWINC1500-MR210PB1954 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATWIN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
