ATWINC1510-MR210UB1961 - Microchip

Description: Module 802.11b/g/n 2.472GHz 11000Kbps 28-Pin SMD Module Tray

Download ATWINC1510-MR210UB1961 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

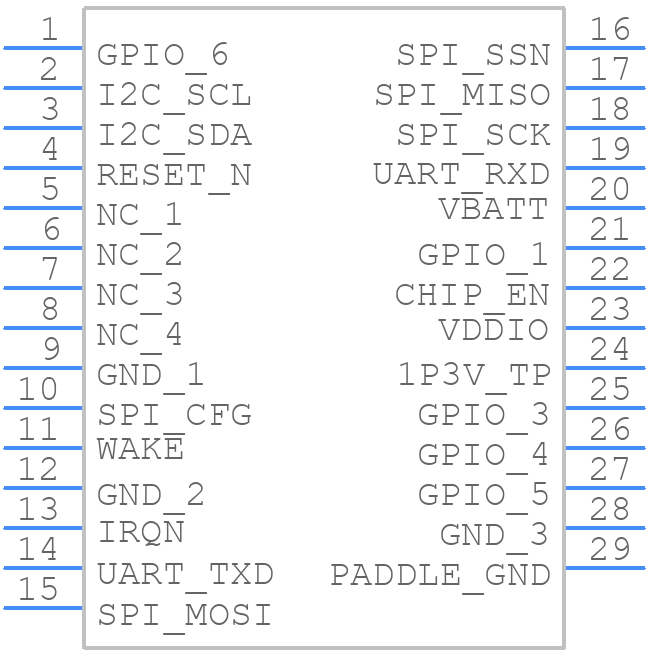

ATWINC1510-MR210UB1961 - Microchip - PCB symbol
click to zoom
PCB Footprints

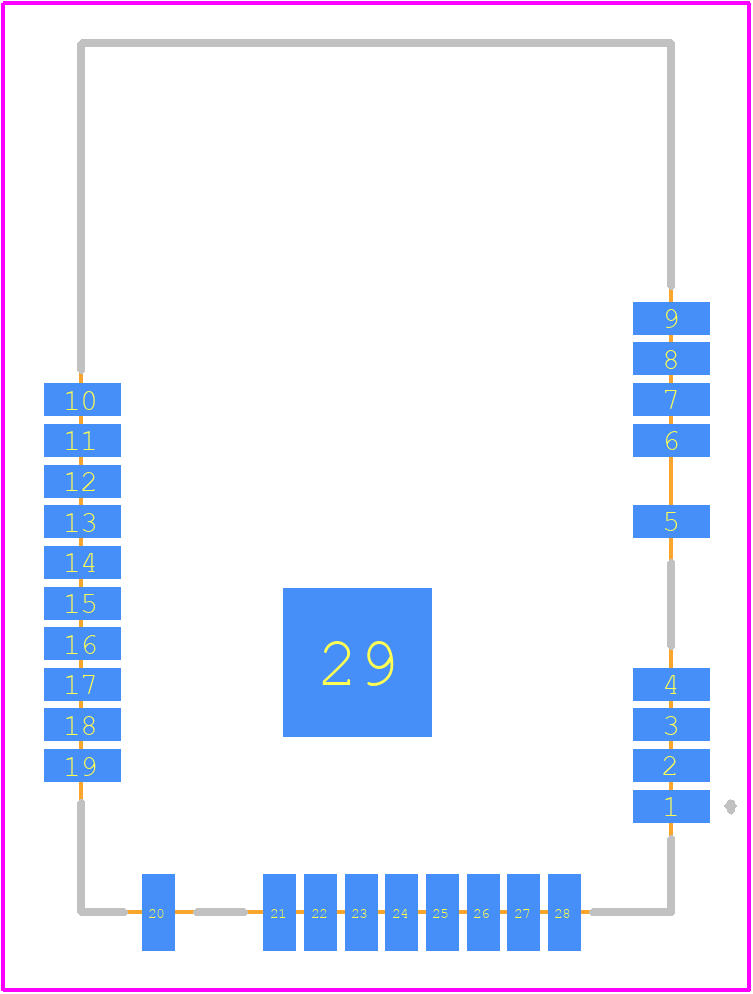

ATWINC1510-MR210UB1961 - Microchip PCB footprint - Other - Other - ATWINC1510-MR210UB1961-2
click to zoom
3D Models
ATWINC1510-MR210UB1961 - Microchip - 3D model - Other - ATWINC1510-MR210UB1961-2
click to zoom

ATWINC1510-MR210UB1961 Details

  • Manufacturer Part Number:

    ATWINC1510-MR210UB1961

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    MODULE-28

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • JESD-30 Code:

    R-XXMA-N28

  • Length:

    21.72 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.113 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    14.73 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

ATWINC1510-MR210UB1961 Frequently Asked Questions (FAQs)

  • The maximum transmit power of the ATWINC1510-MR210UB1961 module is +19.5 dBm.
  • The ATWINC1510-MR210UB1961 module can be configured for Wi-Fi networking using the AT commands provided in the datasheet. You can use a serial terminal to send AT commands to the module to configure Wi-Fi settings such as SSID, password, and IP address.
  • The operating temperature range of the ATWINC1510-MR210UB1961 module is -40°C to +85°C.
  • Yes, the ATWINC1510-MR210UB1961 module is compatible with 3.3V supply voltage. However, ensure that the microcontroller can provide the required current to power the module.
  • The firmware of the ATWINC1510-MR210UB1961 module can be updated using the Microchip's Wi-Fi firmware update tool. The tool is available on the Microchip website, and it provides a step-by-step guide to update the firmware.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATWINC1510-MR210UB1961 Overview

Use the download button to access the ATWINC1510-MR210UB1961 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATWIN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
