ATWINC3400-MR210CA122-T - Microchip

Description: WiFi Modules (802.11) ATWINC3400 802.11 b/g/n + BTLE4.0 Module

Download ATWINC3400-MR210CA122-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

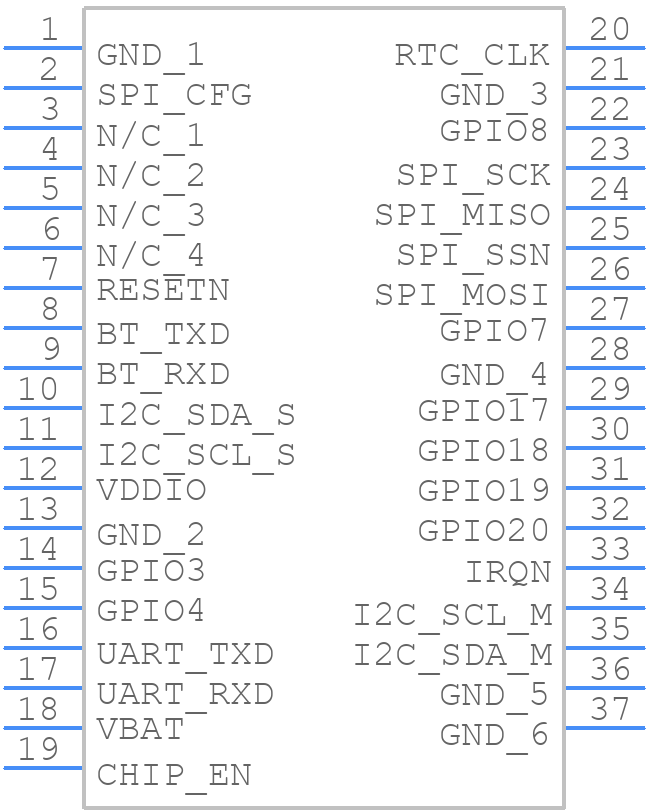

ATWINC3400-MR210CA122-T - Microchip - PCB symbol
click to zoom
PCB Footprints

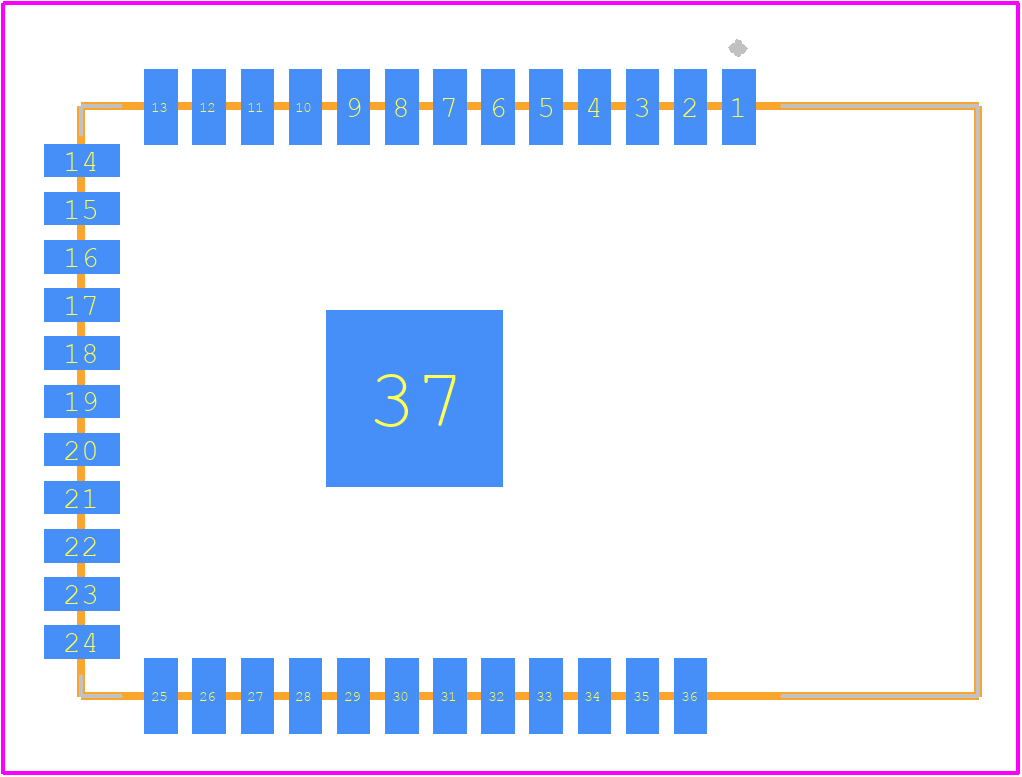

ATWINC3400-MR210CA122-T - Microchip PCB footprint - Other - Other - ATWINC3400-MR210CA
click to zoom
3D Models
ATWINC3400-MR210CA122-T - Microchip - 3D model - Other - ATWINC3400-MR210CA
click to zoom

ATWINC3400-MR210CA122-T Details

  • Manufacturer Part Number:

    ATWINC3400-MR210CA122-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    36

  • Manufacturer Package Code:

    MODULE-36

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Additional Feature:

    SEATED HGT-CALCULATED

  • JESD-30 Code:

    R-XXMA-N36

  • Length:

    22.428 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.087 mm

  • Supply Voltage-Max:

    4.2 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.204 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    14.732 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

ATWINC3400-MR210CA122-T Frequently Asked Questions (FAQs)

  • The operating temperature range of the ATWINC3400-MR210CA122-T module is -40°C to +85°C.
  • Yes, the ATWINC3400-MR210CA122-T module is designed for low-power operation and is suitable for battery-powered devices. It has a low power consumption of around 35mA in active mode and 5mA in standby mode.
  • Yes, the ATWINC3400-MR210CA122-T module supports Wi-Fi Direct, which allows devices to connect to each other without the need for a wireless access point.
  • Yes, the ATWINC3400-MR210CA122-T module has a U.FL connector that allows you to connect an external antenna for improved Wi-Fi performance.
  • The ATWINC3400-MR210CA122-T module supports Wi-Fi 4 (802.11n) and has a maximum data transfer rate of up to 72.2 Mbps.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATWINC3400-MR210CA122-T Overview

Use the download button to access the ATWINC3400-MR210CA122-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATWIN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
