ATWINC3400-MR210CA122 - Microchip

Description: MICROCHIP - ATWINC3400-MR210CA122 - BLUETOOTH MODULE, V4.0, -90DB

Download ATWINC3400-MR210CA122 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

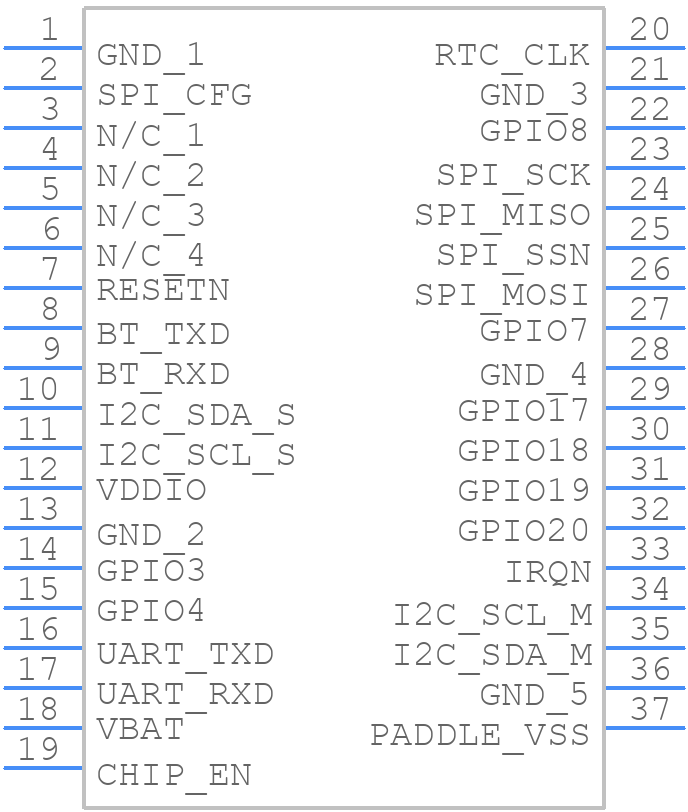

ATWINC3400-MR210CA122 - Microchip - PCB symbol
click to zoom
PCB Footprints

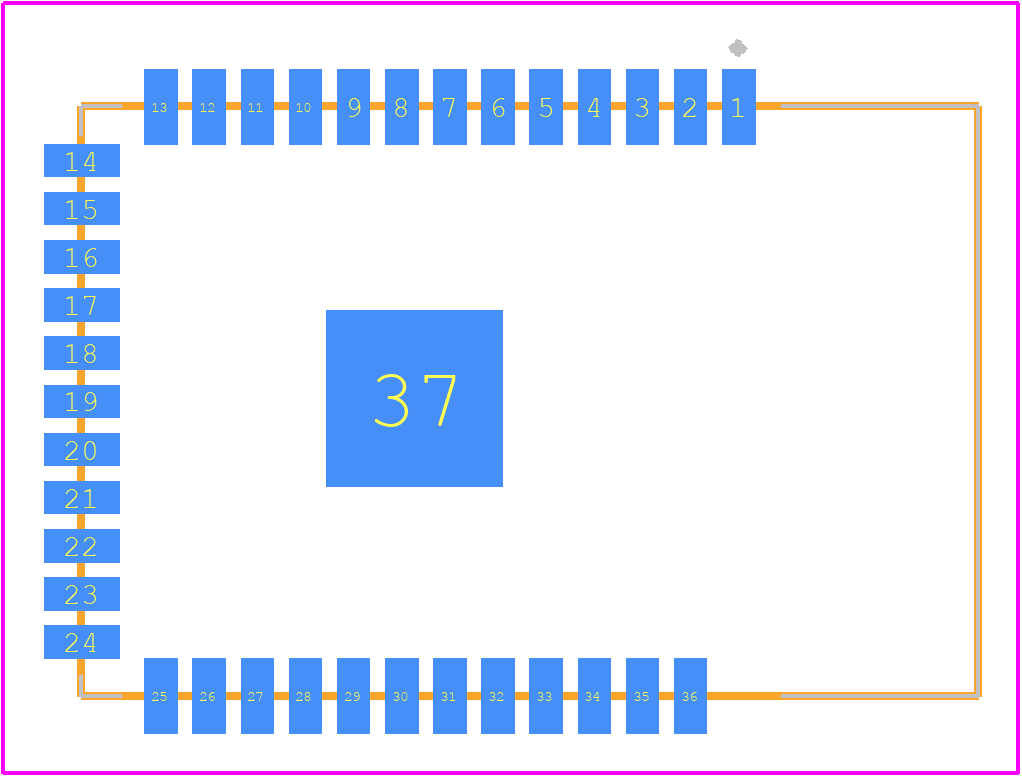

ATWINC3400-MR210CA122 - Microchip PCB footprint - Other - Other - ATWINC3400-MR210CA
click to zoom
3D Models
ATWINC3400-MR210CA122 - Microchip - 3D model - Other - ATWINC3400-MR210CA
click to zoom

ATWINC3400-MR210CA122 Details

  • Manufacturer Part Number:

    ATWINC3400-MR210CA122

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    36

  • Manufacturer Package Code:

    MODULE-36

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-11-16

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N37

  • Length:

    22.428 mm

  • Number of Terminals:

    37

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.087 mm

  • Supply Voltage-Max:

    4.2 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.204 mm

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14.732 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

ATWINC3400-MR210CA122 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ATWINC3400-MR210CA122 module is -40°C to +85°C.
  • The ATWINC3400-MR210CA122 module can be configured for Wi-Fi networking using the AT commands provided in the datasheet. You can use a serial terminal to send AT commands to the module to configure Wi-Fi settings, such as setting the Wi-Fi mode, scanning for access points, and connecting to a network.
  • The maximum data transfer rate of the ATWINC3400-MR210CA122 module is up to 72.2 Mbps.
  • The firmware of the ATWINC3400-MR210CA122 module can be updated using the Microchip's Wireless Utility software. You can download the latest firmware from the Microchip website and follow the instructions provided in the user manual to update the firmware.
  • The power consumption of the ATWINC3400-MR210CA122 module varies depending on the operating mode. In transmit mode, the power consumption is around 240 mA, and in receive mode, it is around 140 mA. In sleep mode, the power consumption is around 2 mA.
