ATWINC3400-MR210CA131-T - Microchip

Description: WiFi Modules (802.11) ATWINC3400 802.11 b/g/n + Bluetooth 5 Module Chip Antenna T&R

Download ATWINC3400-MR210CA131-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

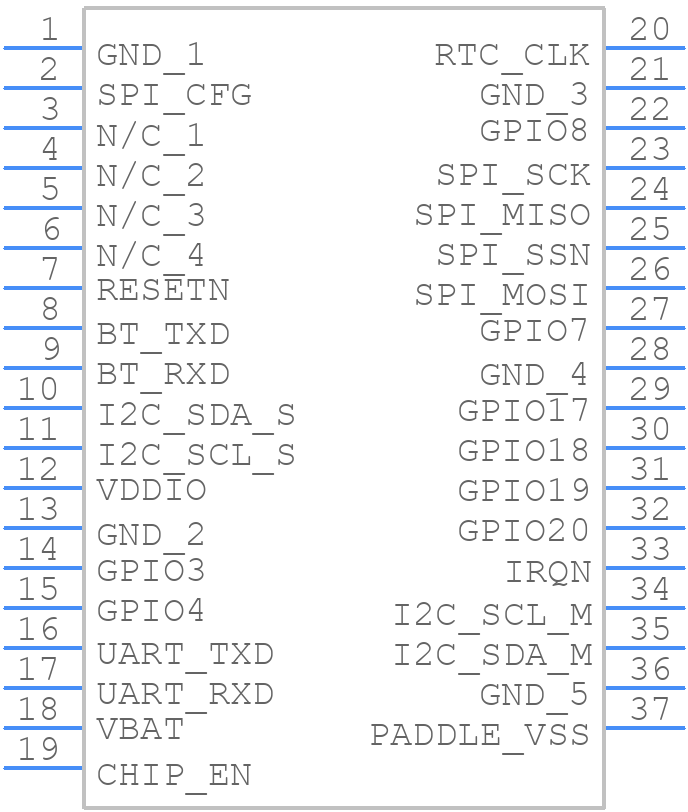

ATWINC3400-MR210CA131-T - Microchip - PCB symbol
click to zoom
PCB Footprints

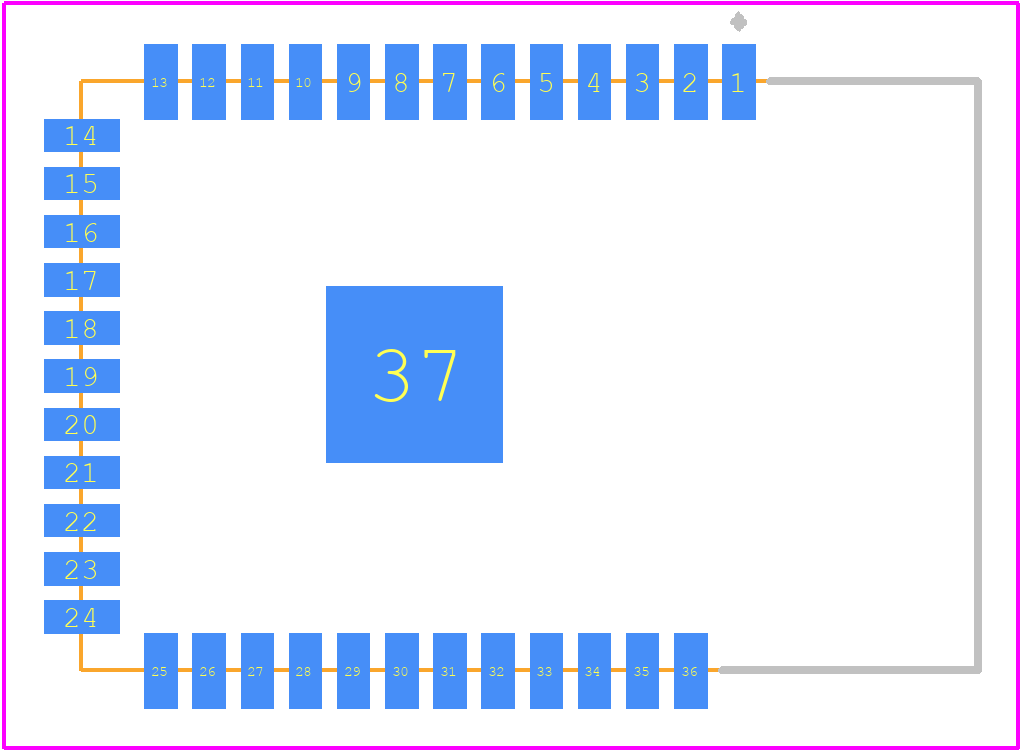

ATWINC3400-MR210CA131-T - Microchip PCB footprint - Other - Other - ATWINC3400-MR210CA131-T-2
click to zoom
3D Models
ATWINC3400-MR210CA131-T - Microchip - 3D model - Other - ATWINC3400-MR210CA131-T-2
click to zoom

ATWINC3400-MR210CA131-T Details

  • Manufacturer Part Number:

    ATWINC3400-MR210CA131-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    MODULE-36

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Additional Feature:

    SEATED HGT-CALCULATED

  • JESD-30 Code:

    R-XXMA-N36

  • Length:

    22.3774 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.0874 mm

  • Supply Voltage-Max:

    4.2 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.204 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    14.732 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

ATWINC3400-MR210CA131-T Frequently Asked Questions (FAQs)

  • The operating temperature range of the ATWINC3400-MR210CA131-T module is -40°C to +85°C.
  • The ATWINC3400-MR210CA131-T module can be configured for Wi-Fi networking using the AT commands provided in the datasheet. You can use a serial terminal to send AT commands to the module to configure Wi-Fi settings, such as setting the Wi-Fi mode, scanning for access points, and connecting to a network.
  • The maximum data transfer rate of the ATWINC3400-MR210CA131-T module is up to 72.2 Mbps.
  • The firmware of the ATWINC3400-MR210CA131-T module can be updated using the Microchip's Wireless Utility software. You can download the latest firmware from Microchip's website and follow the instructions provided in the user manual to update the firmware.
  • The power consumption of the ATWINC3400-MR210CA131-T module varies depending on the operating mode. In transmit mode, the power consumption is around 240 mA, and in receive mode, it is around 140 mA. In standby mode, the power consumption is around 50 mA.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ATWINC3400-MR210CA131-T Overview

Use the download button to access the ATWINC3400-MR210CA131-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATWIN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
