Part Image

ATWINC3400-MR210CA131 - Microchip

Description: WiFi Modules (802.11) ATWINC3400 802.11 b/g/n + Bluetooth 5 Module Chip Antenna

Download ATWINC3400-MR210CA131 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

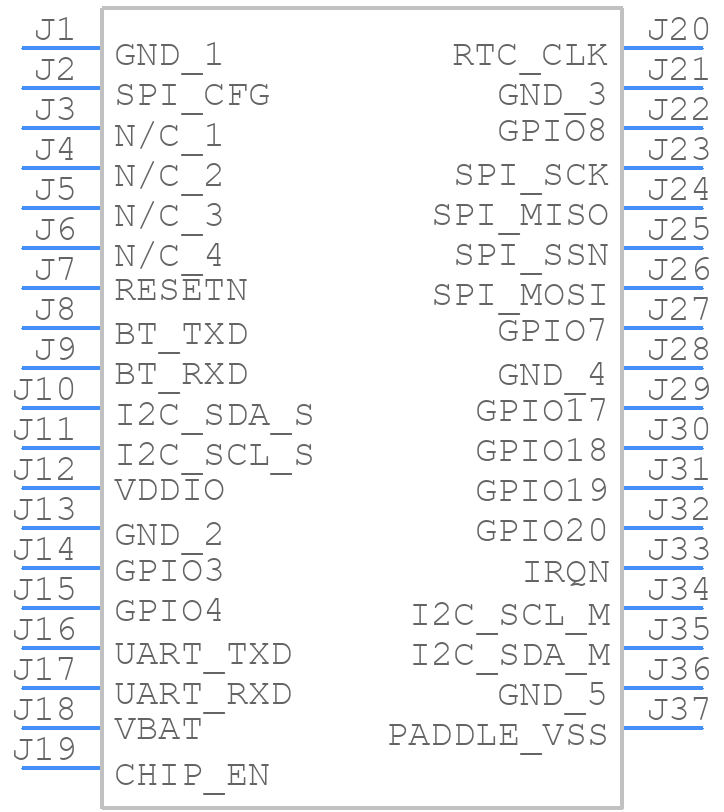

ATWINC3400-MR210CA131 - Microchip - PCB symbol
click to zoom
PCB Footprints

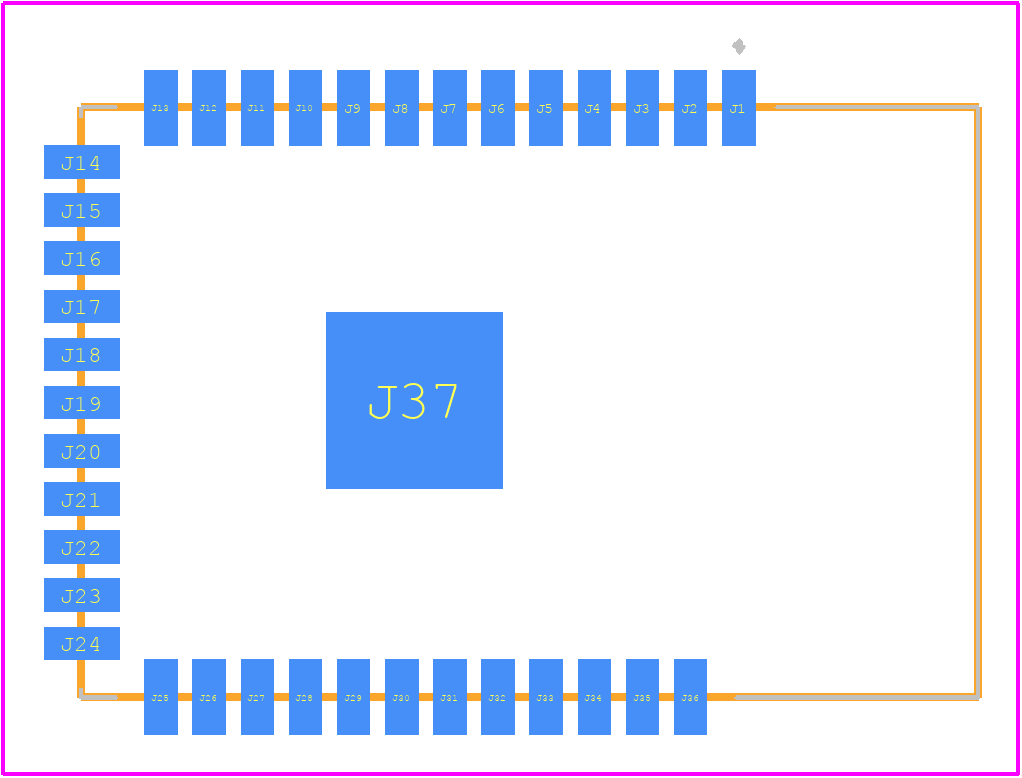

ATWINC3400-MR210CA131 - Microchip PCB footprint - Other - Other - ATWINC3400-MR210CA131-1
click to zoom
3D Models
ATWINC3400-MR210CA131 - Microchip - 3D model - Other - ATWINC3400-MR210CA131-1
click to zoom

ATWINC3400-MR210CA131 Details

  • Manufacturer Part Number:

    ATWINC3400-MR210CA131

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    MODULE-36

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Additional Feature:

    SEATED HGT-CALCULATED

  • JESD-30 Code:

    R-XXMA-N36

  • Length:

    22.3774 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.0874 mm

  • Supply Voltage-Max:

    4.2 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.204 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    14.732 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

ATWINC3400-MR210CA131 Frequently Asked Questions (FAQs)

  • The maximum transmit power of the ATWINC3400-MR210CA131 module is +18 dBm.
  • Yes, the ATWINC3400-MR210CA131 module supports Wi-Fi Direct, which allows for device-to-device connections without the need for a wireless access point.
  • The operating temperature range of the ATWINC3400-MR210CA131 module is -40°C to +85°C.
  • Yes, the ATWINC3400-MR210CA131 module is designed for low power consumption, making it suitable for battery-powered devices. It has a low power sleep mode and wake-on-WLAN feature to minimize power consumption.
  • Yes, the ATWINC3400-MR210CA131 module supports secure boot and secure firmware updates, ensuring that the device boots securely and firmware updates are authenticated and encrypted.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATWINC3400-MR210CA131 Overview

Use the download button to access the ATWINC3400-MR210CA131 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATWIN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
