ATWINC3400A-MU-Y - Microchip

Description: RF System on a Chip - SoC SmartConnect Chipset (WINC3400) - SmartConnect Chipset (WINC3400)

Download ATWINC3400A-MU-Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

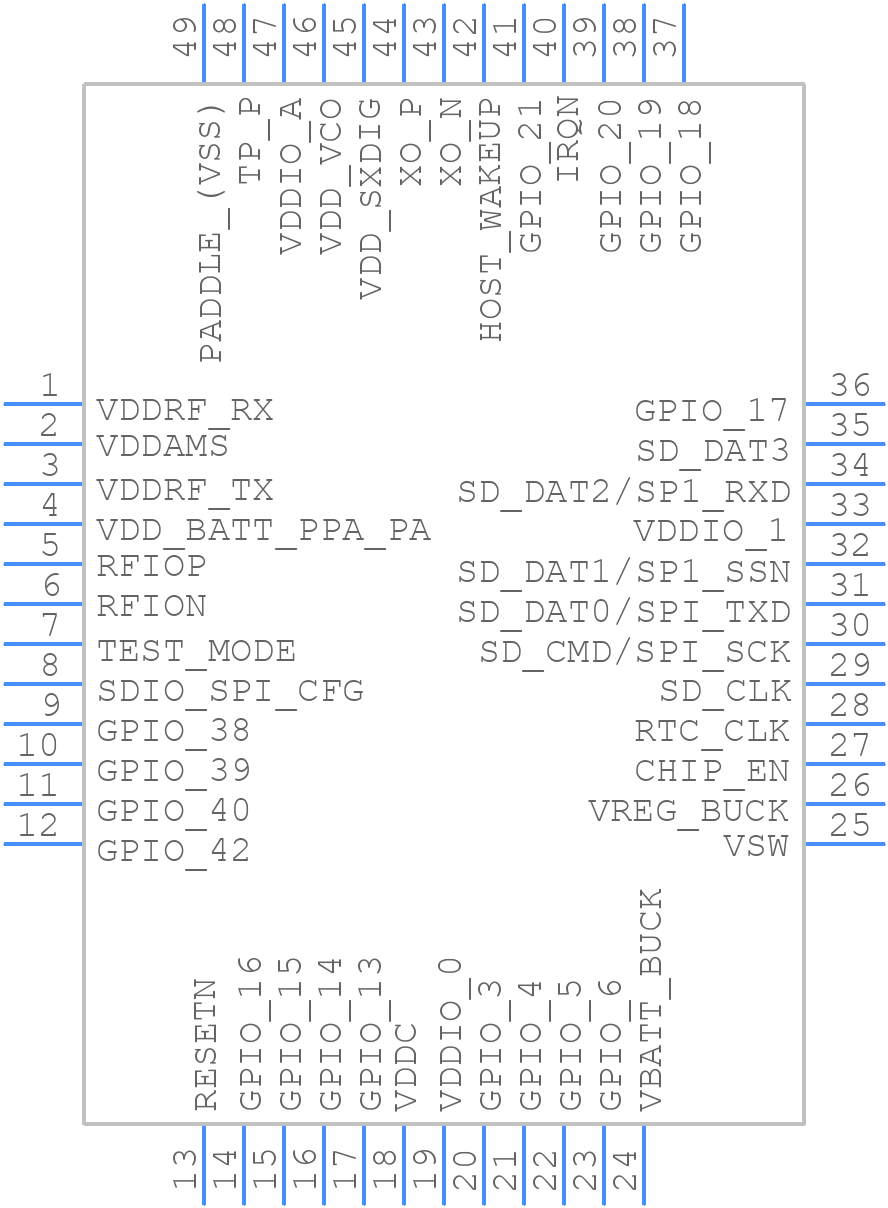

ATWINC3400A-MU-Y - Microchip - PCB symbol
click to zoom
PCB Footprints
ATWINC3400A-MU-Y - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ATWINC3400 QFN48
click to zoom
3D Models
ATWINC3400A-MU-Y - Microchip - 3D model - Quad Flat No-Lead - ATWINC3400 QFN48
click to zoom

ATWINC3400A-MU-Y Details

  • Manufacturer Part Number:

    ATWINC3400A-MU-Y

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VJJE, VQFN-48

  • Country Of Origin:

    South Korea, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-04-16

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    20.61

  • Additional Feature:

    SEATED HT-CALCULATED

  • Bus Compatibility:

    I2C; SPI; UART

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    6 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC
