AUIPS6041GTR - Infineon

Description: Power Switch ICs - Power Distribution Automotive qualified HS 130mohm 40V

Download AUIPS6041GTR Model

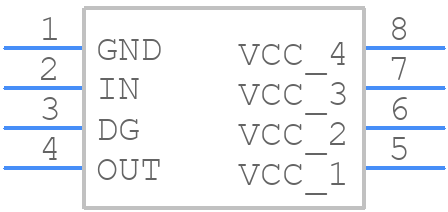

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AUIPS6041GTR - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SO
click to zoom
3D Models
AUIPS6041GTR - Infineon  - 3D model - Small Outline Packages - SO
click to zoom

AUIPS6041GTR Details

  • Manufacturer Part Number:

    AUIPS6041GTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.005 A

  • Output Peak Current Limit-Nom:

    7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    20 µs

  • Turn-on Time:

    15 µs

  • Width:

    3.9 mm

AUIPS6041GTR Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to improve heat dissipation. A minimum of 10 thermal vias with a diameter of 0.3 mm is recommended.
  • Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK, and follow the recommended PCB layout guidelines. Additionally, consider using a heat sink with a thermal resistance of less than 10 K/W.
  • The maximum allowed voltage on the VIN pin is 36 V, but it's recommended to keep it below 35 V to ensure reliable operation and to prevent damage to the device.
  • The device requires a specific power sequencing to prevent damage. Ensure that the VIN pin is powered up before the VCC pin, and that the VCC pin is powered down before the VIN pin.
  • A ceramic capacitor with a value of 10 μF to 22 μF and a voltage rating of at least 50 V is recommended for the VIN pin. X5R or X7R dielectric types are suitable for this application.
