AUIRF8739L2TR - Infineon

Description: MOSFET MOSFET_(20V 40V)

Download AUIRF8739L2TR Model

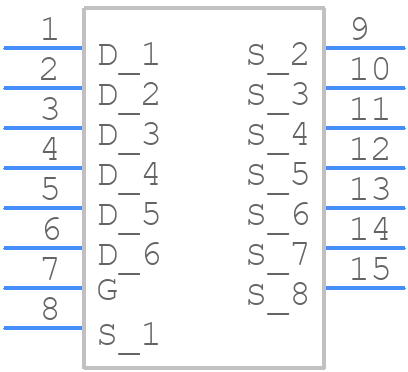

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AUIRF8739L2TR - Infineon PCB footprint - Other - Other - AUIRF8739L2TR-1
click to zoom
3D Models
AUIRF8739L2TR - Infineon  - 3D model - Other - AUIRF8739L2TR-1
click to zoom

AUIRF8739L2TR Details

  • Manufacturer Part Number:

    AUIRF8739L2TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    312 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    375 A

  • Drain-source On Resistance-Max:

    0.0006 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    1830 pF

  • JESD-30 Code:

    R-MBCC-N9

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    9

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    METAL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    340 W

  • Pulsed Drain Current-Max (IDM):

    1150 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

AUIRF8739L2TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AUIRF8739L2TR is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and optimizing the PCB design for heat dissipation.
  • The recommended gate drive voltage for the AUIRF8739L2TR is between 10V and 15V, with a maximum voltage of 20V.
  • To protect the AUIRF8739L2TR from ESD, handle the device with anti-static wrist straps, mats, or bags, and ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD arrays.
  • The maximum allowable current for the AUIRF8739L2TR is 30A, with a maximum pulsed current of 60A.
