AUIRS1170STR - Infineon

Description: Gate Drivers HVIC_IR

Download AUIRS1170STR Model

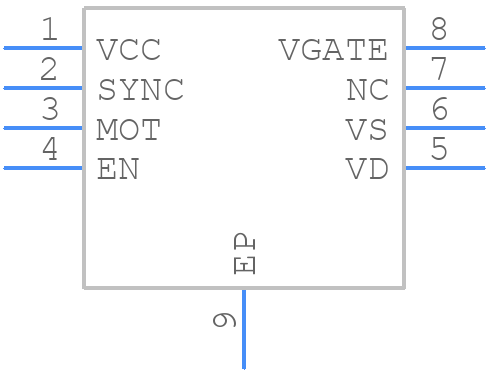

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AUIRS1170STR - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PSOP8L
click to zoom
3D Models
AUIRS1170STR - Infineon  - 3D model - Small Outline Packages - PSOP8L
click to zoom

AUIRS1170STR Details

  • Manufacturer Part Number:

    AUIRS1170STR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    11 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.12 µs

  • Width:

    3.9 mm

AUIRS1170STR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AUIRS1170STR is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 10 K/W, and ensuring good airflow around the device.
  • A 2-layer or 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and use wide traces to minimize resistance.
  • Use a TVS diode or a zener diode to protect against overvoltage, and a fuse or a current-sensing resistor to protect against overcurrent.
  • The recommended gate drive voltage is 10-15V, with a rise time of ≤ 10ns and a fall time of ≤ 10ns.
