Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to improve heat dissipation. A minimum of 10 thermal vias with a diameter of 0.3 mm to 0.5 mm is recommended.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and PCB layout. Additionally, consider using a thermistor or thermocouple to monitor the device temperature.
When selecting a gate driver for the AUIRS2123STR, critical parameters to consider include the driver's output current capability, rise and fall times, and the ability to handle the device's input capacitance. Additionally, consider the driver's voltage rating, propagation delay, and the number of outputs required.
To troubleshoot issues with the AUIRS2123STR, start by verifying the power supply voltage, checking for proper PCB layout and thermal design, and ensuring correct gate driver selection. Use oscilloscopes and logic analyzers to monitor the device's inputs and outputs, and consult Infineon's application notes and technical support resources as needed.
To ensure EMI and EMC compliance when using the AUIRS2123STR, consider the device's switching frequency, PCB layout, and component selection. Implement proper shielding, filtering, and grounding techniques, and follow Infineon's guidelines for EMI reduction. Additionally, consult relevant industry standards and regulations, such as CISPR and IEC.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AUIRS2123STR Overview

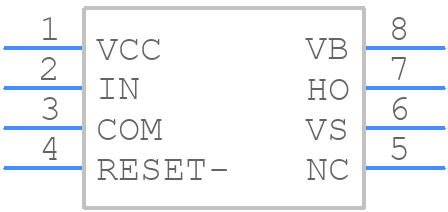

Use the download button to access the AUIRS2123STR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AUIRS,
or try a keyword search, such as MOSFET Drivers
