AUIRS2191STR - Infineon

Description: Driver 600V 3.5A 2-OUT Hi/Lo Side Non-Inv Automotive 16-Pin SOIC N T/R

Download AUIRS2191STR Model

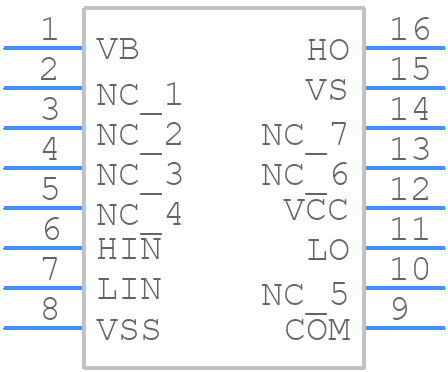

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AUIRS2191STR - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16N
click to zoom
3D Models
AUIRS2191STR - Infineon  - 3D model - Small Outline Packages - SOIC16N
click to zoom

AUIRS2191STR Details

  • Manufacturer Part Number:

    AUIRS2191STR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, MS-012AC, SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.89 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.175 µs

  • Turn-on Time:

    0.175 µs

  • Width:

    3.9 mm

AUIRS2191STR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
  • Use a shielded cable and connector, and ensure the PCB is designed with EMC in mind. Follow Infineon's application notes for EMC guidelines.
  • The maximum allowed voltage on the input pins is 35V, but it's recommended to keep it below 30V to ensure reliable operation.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage, input signal quality, and PCB layout for any issues.
  • The device is rated for operation up to 150°C, but the maximum junction temperature should not exceed 175°C. Ensure proper heat sinking and thermal management in high-temperature environments.
