AVA-183A+ - Mini-Circuits

Description: RF Amplifier ML AMPL / SURF MOUNT / RoHS

Download AVA-183A+ Model

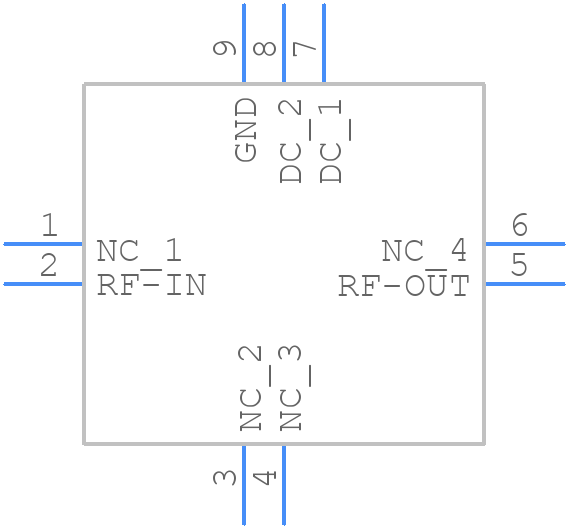

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AVA-183A+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ849
click to zoom
3D Models
AVA-183A+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - DQ849
click to zoom

AVA-183A+ Details

  • Manufacturer Part Number:

    AVA-183A+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10.8 dB

  • Input Power-Max (CW):

    20 dBm

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER
