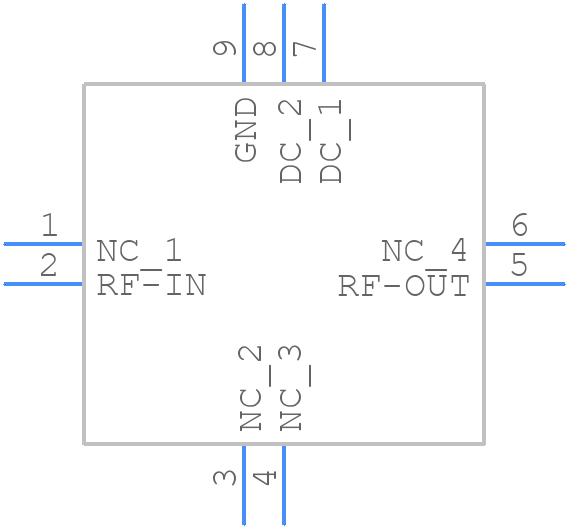

AVA-24A+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
AVA-24A+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ849
click to zoom
3D Models
AVA-24A+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ849
click to zoom

AVA-24A+ Details

  • Manufacturer Part Number:

    AVA-24A+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    8.5 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC8,.12SQ,25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    147 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    TIN SILVER OVER NICKEL

  • VSWR-Max:

    1.57

AVA-24A+ Frequently Asked Questions (FAQs)

  • The maximum input power that the AVA-24A+ can handle is +10 dBm. Exceeding this limit may cause damage to the device.
  • To ensure stability, it is recommended to use a 50-ohm input and output impedance, and to use a decoupling capacitor (e.g., 10 uF) between the power supply and ground.
  • The operating temperature range of the AVA-24A+ is -40°C to +85°C. Operating outside this range may affect the amplifier's performance and reliability.
  • While the AVA-24A+ is designed for 50-ohm systems, it can be used in non-50-ohm systems with some performance degradation. However, it is recommended to use impedance-matching networks to optimize performance.
  • To reduce the noise figure, use a high-quality, low-noise power supply, and ensure that the input signal is properly filtered and matched to the amplifier's input impedance.
