AW-CM389NF - AzureWave Technologies

Description: WLAN+BTCombo Module IEEE 802.11a/b/g/n/ac Bluetooth v4.0(BLE)

Download AW-CM389NF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AW-CM389NF model

Email notifications will be applied after download.

Send part feedback

Symbol

AW-CM389NF - AzureWave Technologies - PCB symbol

PCB Footprints

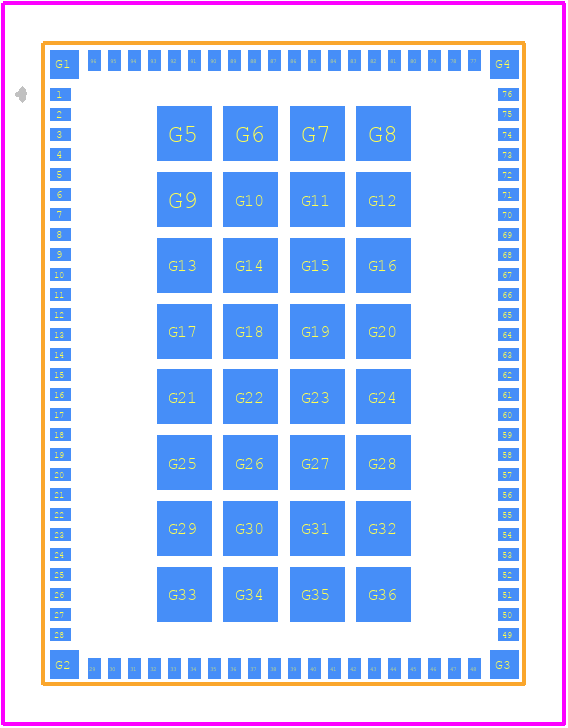

AW-CM389NF - AzureWave Technologies PCB footprint - Other - Other - AW-CM389NF-3

3D Models

AW-CM389NF - AzureWave Technologies - 3D model - Other - AW-CM389NF-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for AW-CM389NF
Part Number AW-CM389NF
Manufacturer AzureWave Technologies
Pin Count 132
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - AW-CM389NF-3
Released Date Jun 12, 2021
Last Modified Date Nov 25, 2024 8:52 AM UTC
Pinout / Pin List Click Here (Member Only)

AW-CM389NF Details

Manufacturer Part Number:
AW-CM389NF
Manufacturer:
AzureWave Technologies

Trust Checks

Community Provided

System Verified

Community Approved

AW-CM389NF Overview

Use the download button to access the AW-CM389NF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AW-CM, or try a keyword search, such as Fixed Inductors
