AW3223 - Panasonic

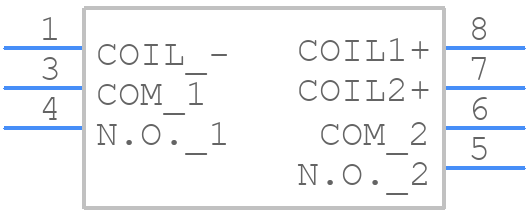

AW3223 Details

• Manufacturer Part Number:

  AW3223

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7.75

• Additional Feature:

  SOCKET MOUNTABLE

• Body Breadth:

  15 mm

• Body Height:

  10 mm

• Body Length or Diameter:

  20 mm

• Coil Current(DC)-Max:

  0.017 A

• Coil Operate Voltage(DC):

  8.4 V

• Coil Power:

  200 mW

• Coil Release Voltage(DC):

  8.4 V

• Coil Resistance:

  720 Ω

• Coil Voltage(DC)-Max:

  15.6 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  2500VA@250VAC

• Contact (AC) Max Rating R Load:

  8A@250VAC

• Contact Current(AC)-Max:

  8 A

• Contact Current(DC)-Max:

  8 A

• Contact (DC) Max Power Rating R Load:

  300W@125VDC

• Contact (DC) Max Rating R Load:

  8A@125VDC

• Contact Resistance:

  30 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  125 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Nickel

• End Contact Plating:

  GOLD FLASH

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  7

• Operate Time:

  10 ms

• Operating Temperature-Max:

  65 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  20mm x 15mm x 10mm

• Reference Standard:

  CSA; TUV; UL; VDE

• Relay Action:

  LATCHED

• Relay Form:

  2 FORM A

• Relay Function:

  DPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.004000508001016002 inch

• Termination Type:

  SOLDER
