- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AW3234
- Part Number AW3234
- Manufacturer Panasonic
- Pin Count 7
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - AW3234-1
- Released Date Nov 22, 2025
- Last Modified Date Apr 30, 2026 1:47 PM UTC
- Pinout / Pin List Click Here (Member Only)
AW3234 Details
-
Manufacturer Part Number:
AW3234
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
7
-
Relay Type:
POWER/SIGNAL RELAY
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
AW3234 Overview

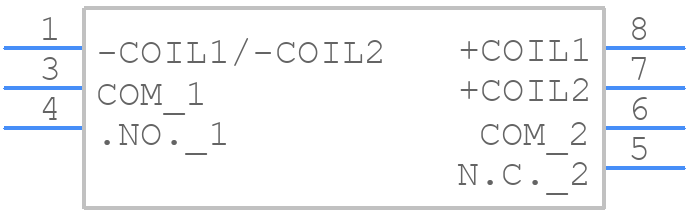

Use the download button to access the AW3234 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AW323,
or try a keyword search, such as Visible LEDs
